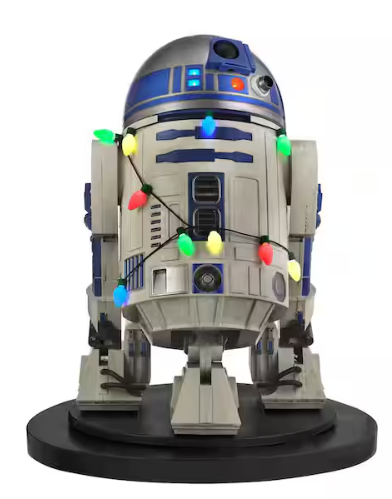

Product Overview

Model Number: 25SV24905
Height: 3.5 ft.
Motion: Forward and back, head turns side-to-side.
Sound: 5 classic R2-D2™ sounds
Lighting: LED head and seasonal colored lights
Lighting Modes: LED Mode 1 - red, yellow, green, and blue lights. LED Mode 2 - orange and purple lights
Activation: Infrared motion sensor
Indoor item
Power Requirements: 3A Indoor Adapter

Replacement Parts

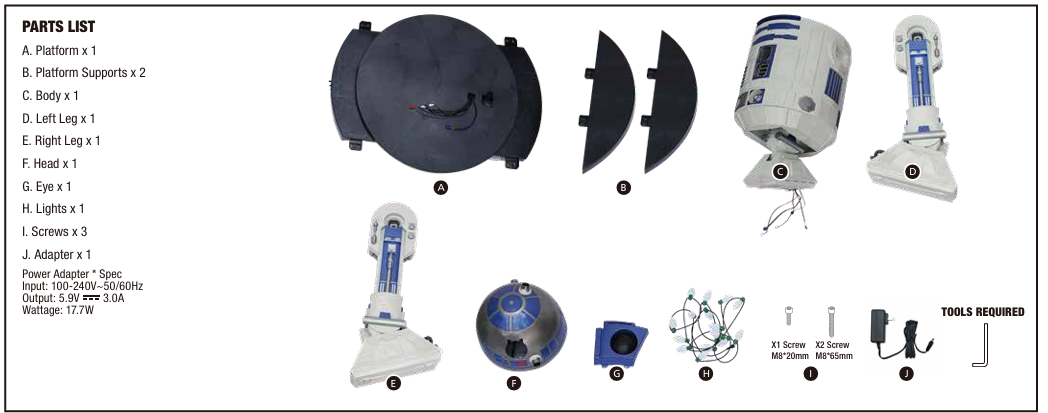

Parts List:

Setting	Description
LIGHTS ONLY	This setting will activate the lights of the item. This setting does not have any animation or sound.
OFF	In this mode, the item is only activated for a 15 second activity cycle if the Step Pad is pressed. Otherwise, it remains off.
SENSOR/TIMER	This mode runs on a 6-hour active and 18-hour off cycle that repeats daily. During the active period, the IR sensor (range up to 4 m/13 ft, 80° angle) activates one animation and sound cycle. Lights stay on continuously during the 6-hour active phase, even without sensor activation.
LED MODE	LED Mode 1 – Bulbs will light up with red, yellow, green, and blue lights. LED Mode 2 – Bulbs will light up with orange and purple lights.
	Adjustable dial; turn all the way down to mute.

Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
Switch on the control box should be set to your preferred mode.
If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
Be sure nothing is blocking movement or caught in moving parts.
Ensure the base surface is flat and nothing blocks the movement.
Check that the speaker volume is turned up.
Indoor item.

What power adapter should I use with 3.5 ft. Animated LED R2-D2?
A: This item requires 3A Indoor Adapter.
