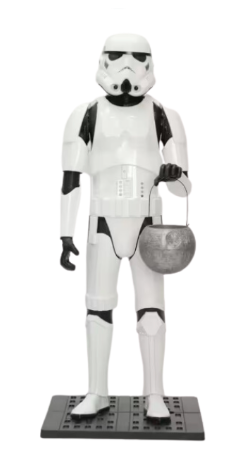

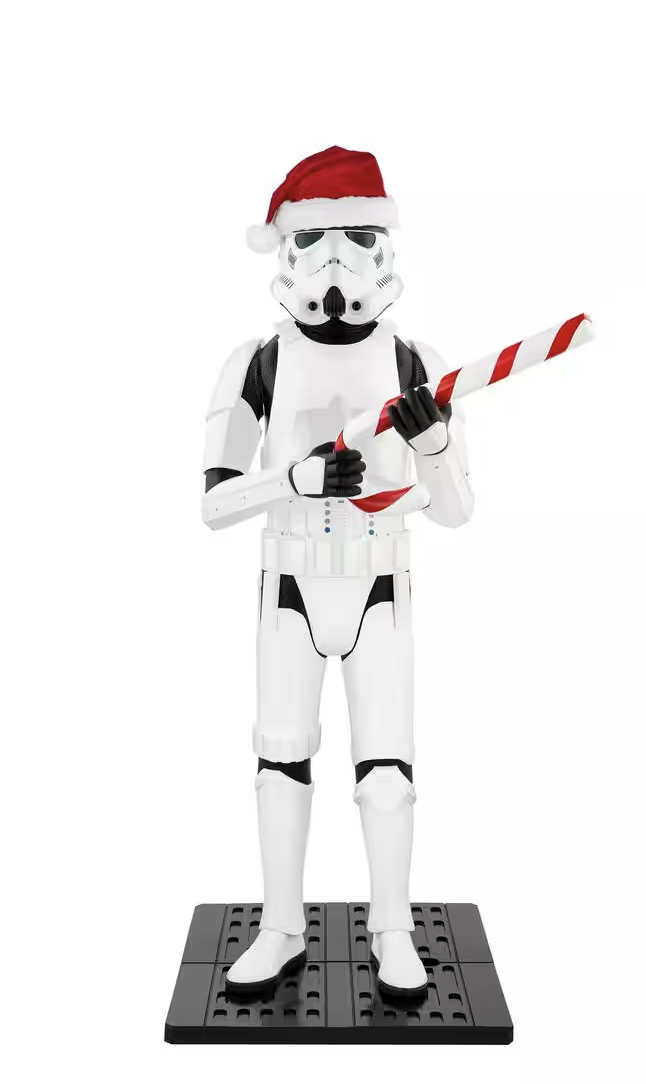

Product Overview
- Model Number: 24SV24407
- Height: 6 ft.
- Motion: Head movement
- Sound: 3 phrases
- Activation: Infrared motion sensor
- Indoor item
- Power Requirements: 2A Indoor Adapter
Replacement Parts
Purchase Replacement Parts here
Limited stock: Parts available while supplies last!

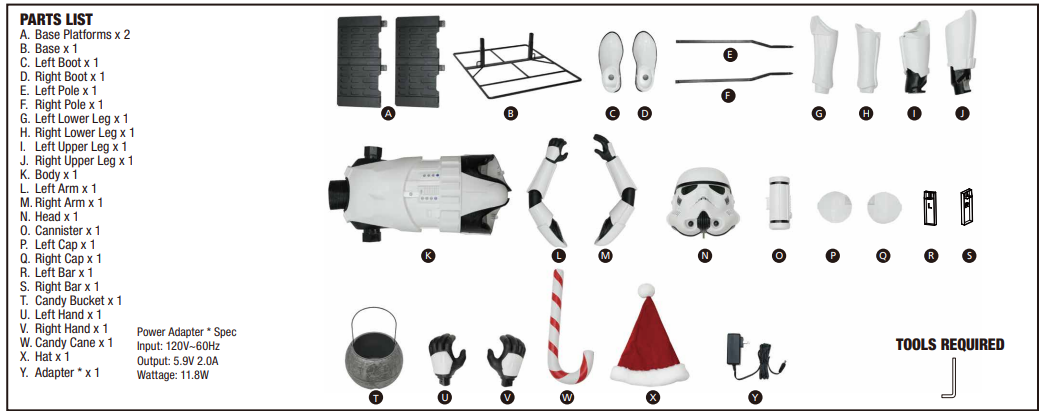

Parts List:
Assembly Instructions
- Recommended: 1 adult
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
| Setting | Description |
SENSOR/TIMER |
Activates SENSOR mode for 6 hours, then disables it for 18 hours in a repeating cycle. The IR sensor (up to 13 ft, 80° range) triggers 1 activity cycle when motion is detected. Cycle repeats daily until the switch is changed. |
OFF/STEP PAD |
All features are off unless activated by an optional Step Pad or Try Me Button (not included). |
| Raise or lower the volume using the volume control turn dial, turn all the way down to turn the volume off |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
- Be sure nothing is blocking movement or caught in moving parts.
- Check that the speaker volume is turned up.
- Indoor item.
Troubleshooting & FAQs
Q: What's the size of the head screw?
A: Head screw: M6 x 1.00, 1 1/4” long Arm screw: M6, 25mm long
