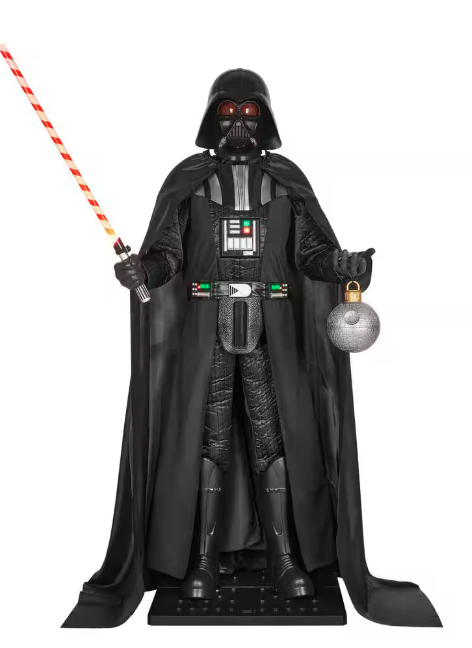

Product Overview
- Model Number: 24SV24292
- Height: 7 ft.
- Motion: Head and right arm movement
- Sound: Classic Darth Vader sound
- Lighting: Lightsaber
- Activation: Infrared motion sensor
- Power Requirements: 3A Indoor Adapter
Replacement Parts
Purchase Replacement Parts here
Limited stock: Parts available while supplies last!

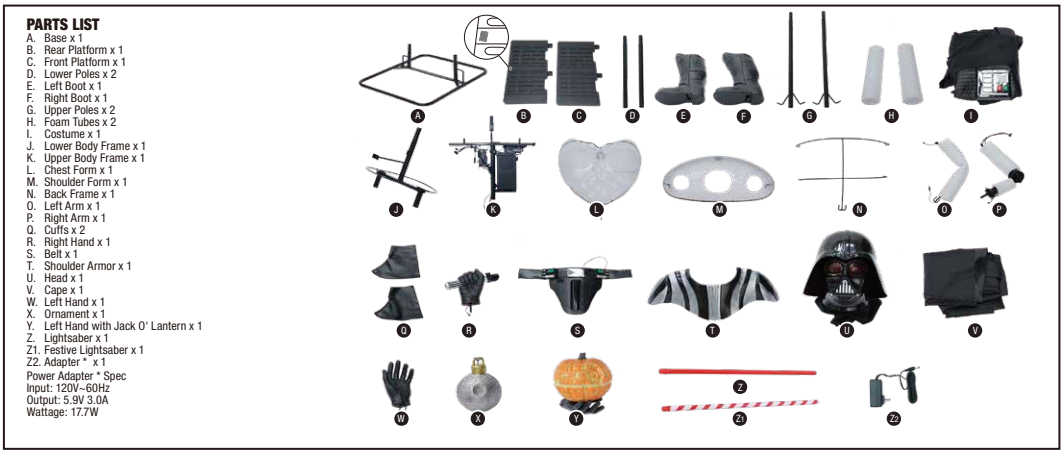

Parts List:
Assembly Instructions
- Recommended: 1 adult
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
| Setting | Description |
| SENSOR | Lights, sound, and animation activate for one cycle when the IR sensor detects motion (up to 13 ft, 80° range; front, sides, above, or below). |
| OFF/STEP PAD | All features are off unless activated by an optional Step Pad or Try Me Button (not included). |
| LIGHTS ONLY | Lights activate indefinitely until the setting is changed. No sound or animation. |
| Adjustable dial; turn all the way down to mute. |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- If not functioning properly (ex: lightsaber or chest panel doesn't light up, head or lightsaber doesn't move), ensure that cables are connected to their corresponding cable as shown in the instruction sheet
- Be sure nothing is blocking movement or caught in moving parts.
- Indoor item.
Troubleshooting & FAQs
Q: The Lightsaber stopped moving, what part should I replace?
A: First, double-check all connections—especially steps 5.1, 5.2, and 5.4 in the instruction sheet, to make sure everything is secure.
If everything is properly connected and the Lightsaber still isn’t moving, you may need to replace part P.
