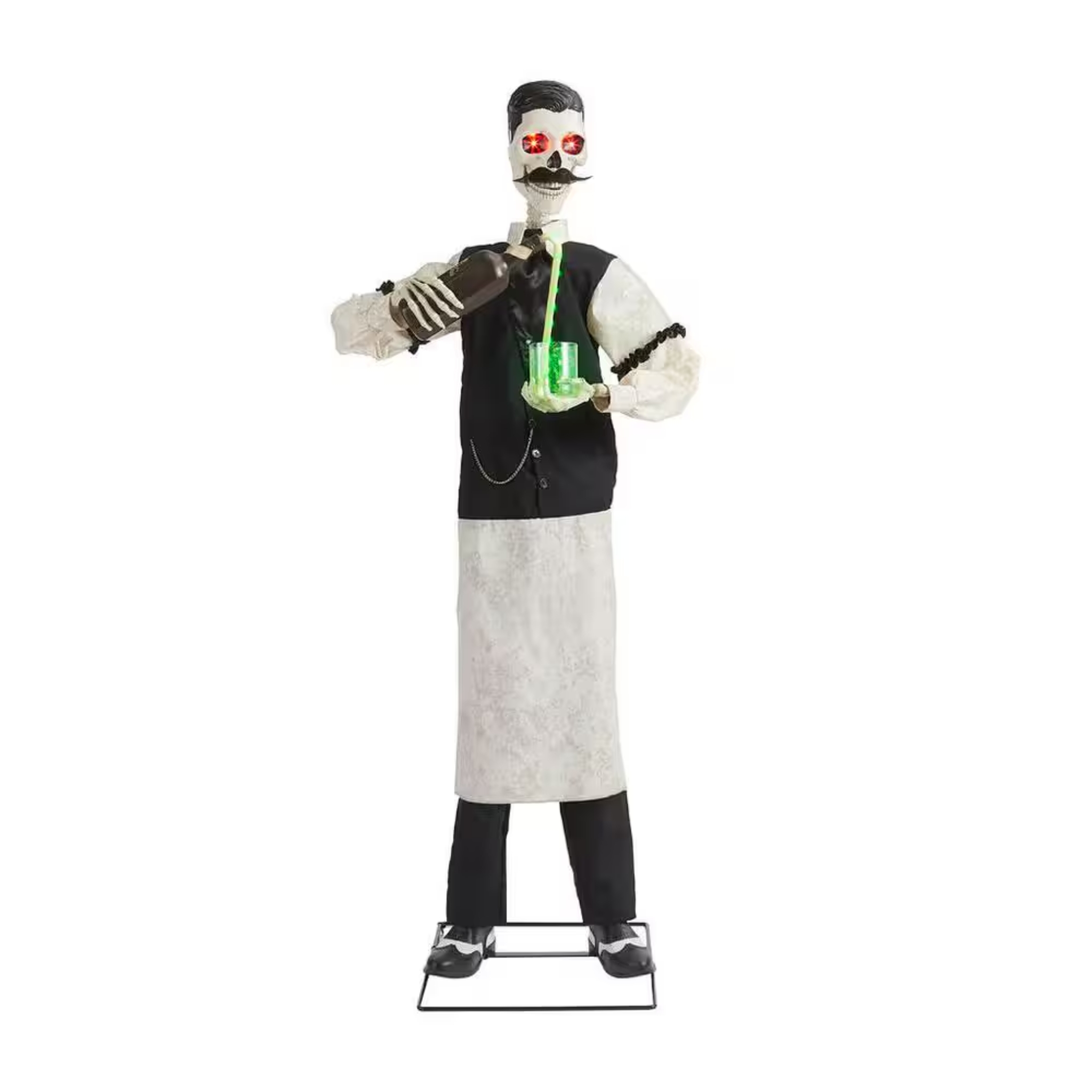

Product Overview
- Model Number: 22SV23340
- Height: 6 ft.
- Motion: Head and jaw movement
- Lighting: LED Eyes
- Activation: Infrared motion sensor
- Power Requirements: 2A Indoor Adapter
Replacement Parts
Purchase Replacement Parts here
Limited stock: Parts available while supplies last!

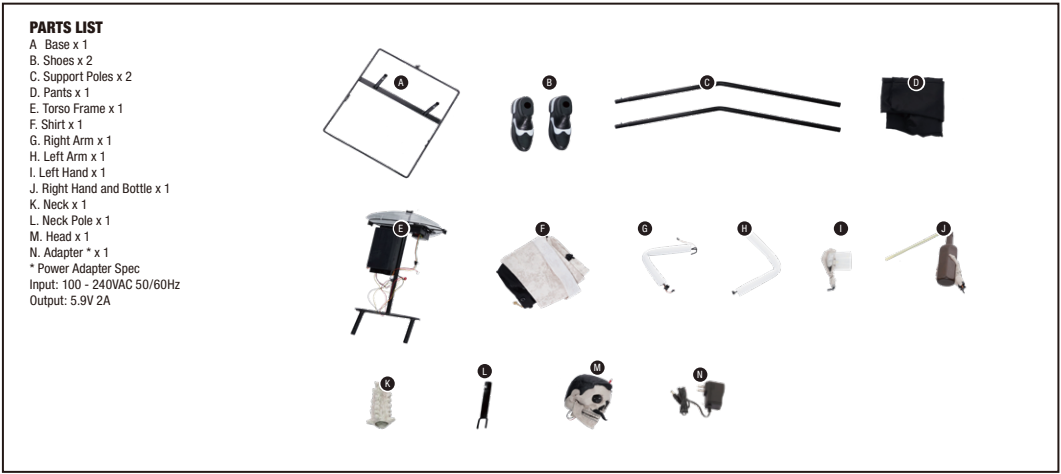

Parts List:
Assembly Instructions
- Recommended: 1 adult
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
| Setting | Description |
SENSOR |
Activates lights, sound, and animation for one audio cycle when motion is detected (up to 6.5 ft, 80° range; left to right, above, or below). |
O |
Activates one audio cycle when triggered by a Step Here Try Me Pad (not included). Remains off otherwise. |
I |
This switch mode will continuously operate the lights, sound, and animation of the item. |
| Adjustable dial; turn all the way down to mute. |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
- Be sure nothing is blocking movement or caught in moving parts.
- Ensure the base surface is flat and nothing blocks the movement.
- Check that the speaker volume is turned up.
- Indoor item.
Troubleshooting & FAQs
Q: My Dean’s bottle light isn’t working. What should I do??
A: Let’s start by checking that all connections are secure and properly plugged in.
If everything looks good and the light still isn’t working, we recommend ordering a replacement bottle.
