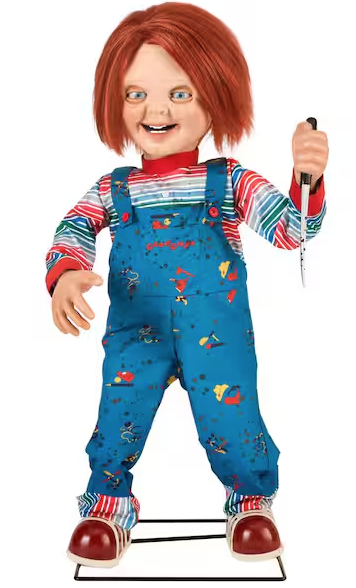

Product Overview
- Model Number: 24SV24291
- Height: 3.5 ft.
- Motion: Body, arm, head and mouth movement
- Sound: 3 spooky phrases
- Activation: Infrared motion sensor
- Power Requirements: 3A Indoor Adapter
Replacement Parts
Purchase Replacement Parts here
Limited stock: Parts available while supplies last!

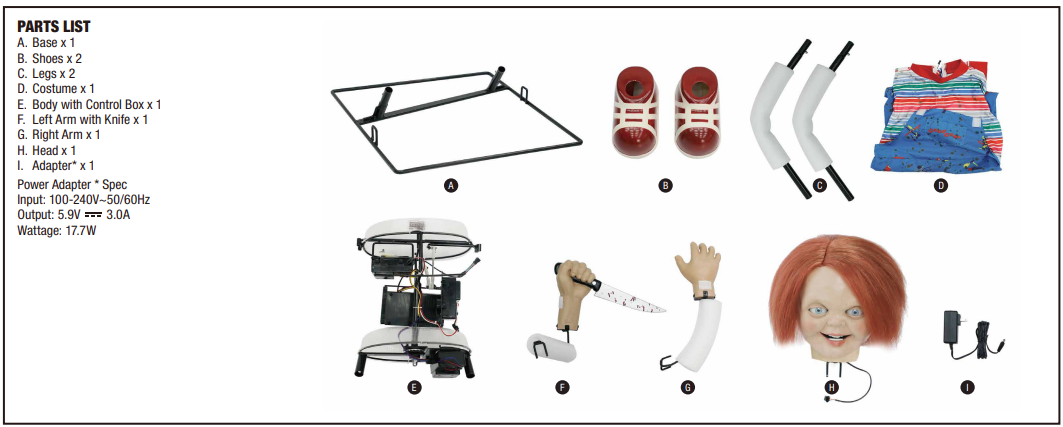

Parts List:
Assembly Instructions
- Recommended: 1 adult
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
Setting |
Description |
| TIMER/SENSOR | Press the middle button twice to enable a repeating cycle: 6 hours of SENSOR mode, followed by 18 hours off. During the active period, motion within 13 ft and 80° range triggers 1 cycle of Chucky’s animation and sound. |
| OFF/STEP PAD | All features are off unless activated by an optional Step Pad or Try Me Button(not included). |
| Adjustable dial; turn all the way down to mute. |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
- Be sure nothing is blocking movement or caught in moving parts.
- Ensure the base surface is flat and nothing blocks the movement.
- Check that the speaker volume is turned up.
- Recommended for Indoor use.
Troubleshooting & FAQs
Q: Why do my Chucky's eyes stay closed between activations?
A: Great question—it actually helps preserve the servo motor!
When the animatronic is powered off, the servo motor that controls the eyes may not have enough power to hold them in an open position. This is because servo motors typically hold their position by maintaining a specific electrical signal. Without power, they may naturally move to a default position, such as having the eyes closed.
Tip: We recommend keeping the animatronic powered off when not in use. This helps keep the motor in good condition and avoids potential damage over time.
Q: My Chucky is not making any sound. How do I fix it?
A: Let's troubleshoot it together!
- Double-check that all cables are securely connected—refer to steps 1.3, 2.1, and 3.3 in the instruction sheet.
- Make sure the switch is set to Sensor mode—the sound will trigger when the sensor is activated.
