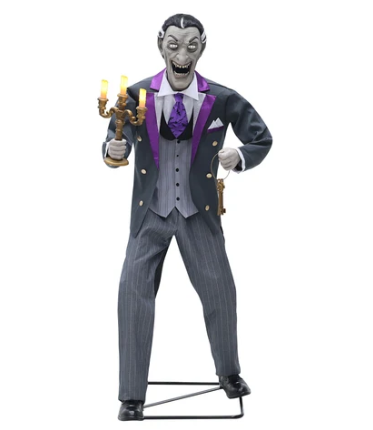

Product Overview

• Model Number: 5125407
• Height: 6 feet
• Motion: Motion Sensor Activated (LED blinking eyes, Turning head and torso, Moving jaw and arm)
• Sound: Plays Haunting Sounds
• Lighting: Light-up candelabra
• Indoor/Outdoor item

• Power Requirements: 2.0A Outdoor Adapter



Replacement Parts

Limited stock: Parts available while supplies last!

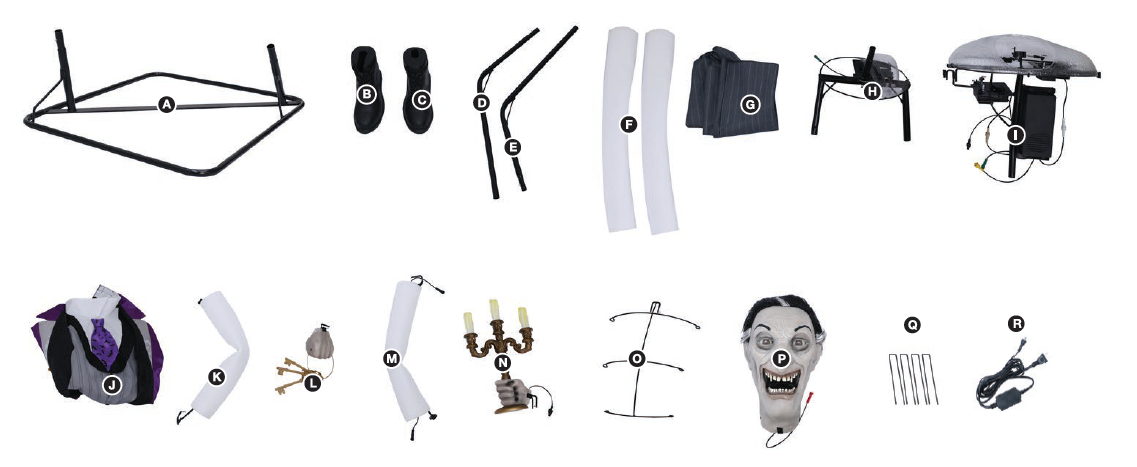

Parts List:

Assembly Instructions

• Recommended: At least 2 Adults
• Ensure: All parts are properly connected as shown in the instruction manual
• Download: Parts List and Assembly Instructions PDF

Control Box Settings

Setting	Description
SENSOR	This switch mode activate lights, sound and animation only when the Infra-red (IR) sensor is triggered. The item will operate for one activity cycle with each sensor activation. The Infra-red (IR) sensor will activate when someone comes within an 80-degree angle from  left-to-right, as well as from above and below. The Infra-red (IR) sensor has a range of up to 2 m / 6.5 ft/6.5 pi.
ON	This setting continually operates the lights of the item without animation and sound.
OFF	This switch mode will turn the lights, sounds and animation off.
	Raise or lower the volume using the volume control turn dial, turn all the way down to turn the volume off.

Important Setup Tips

• Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
• Switch on the control box should be set to your preferred mode.
• If not functioning properly (ex: head and hands don't light up, head doesn't move), ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure the base surface is flat and nothing blocks the movement.

• Check that the speaker volume is turned up.



Troubleshooting & FAQs
