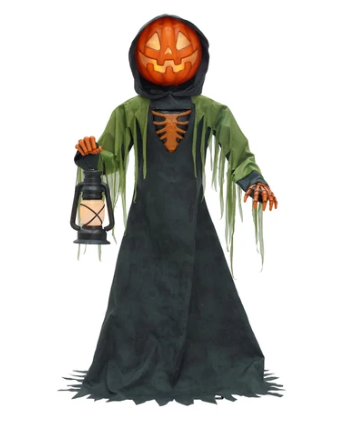

Product Overview
- Model Number: 5125423
- Height: 5 feet
- Motion: Animated movement operates for one activity cycle when activated by the IR sensor or Try Me button.
- Sound: Includes sound with adjustable volume; the volume can be turned completely off.
- Lighting: Integrated lights activate along with the sound and animation. In ON mode, lights, sound, and animation operate continuously.
- Activation: Built-in IR sensor detects movement up to 6.5 ft. within an approximately 80° detection angle. It can also be activated using the included Step Here Try Me Activation Button.
- Indoor/Outdoor item
-
Power Requirements: 2.0A Outdoor Adapter
Replacement Parts
Limited stock: Parts available while supplies last!

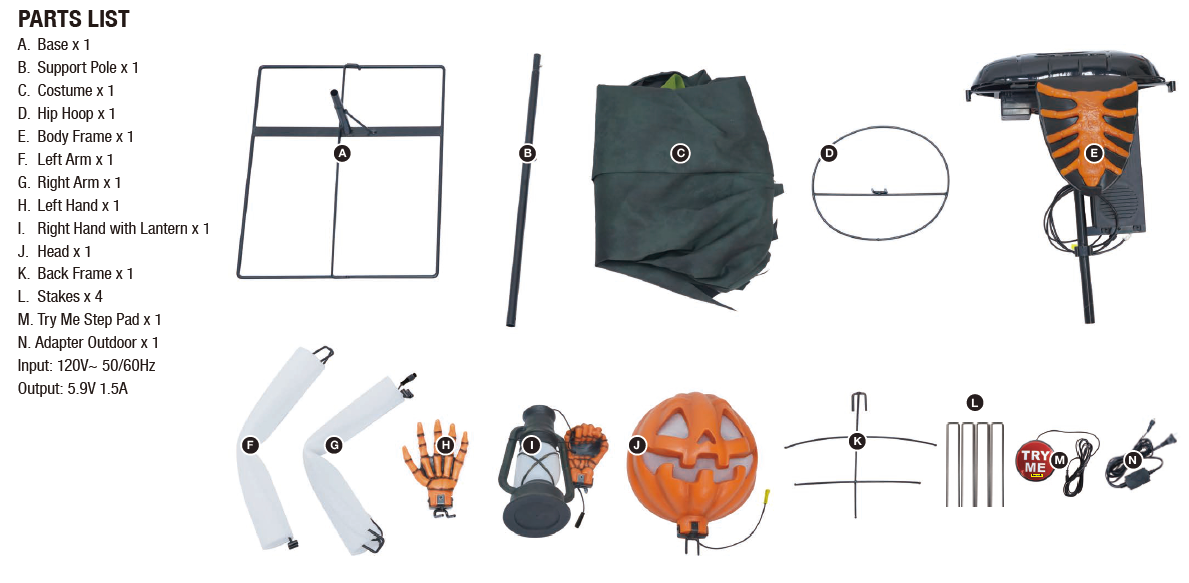

Parts List:
Assembly Instructions
- Recommended: 1 Adult
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
| Setting | Description |
|---|---|
| SENSOR | This switch mode will activate lights, sound, and animation when the Infra-red (IR) sensor is activated and will operate for one activity cycle with each activation. The Infra-red (IR) sensor has a range of up to 2 m/6.5 ft. and will activate when someone comes within an 80-degree angle from left-to-right, as well as from above and below. |
| OFF/TRY ME | This switch mode allows the item to be activated only if triggered by using a Step Here Try Me Activation Button (Included). The item will operate for one activity cycle with each Try Me activation. |
| ON | This switch mode will continually operate the lights, sound, and animation of the item. |
| Raise or lower the volume using the volume control turn dial, turn all the way down to turn the volume off . |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- If not functioning properly (ex: head and hands don't light up, head doesn't move), ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
- Be sure nothing is blocking movement or caught in moving parts.
- Ensure the base surface is flat and nothing blocks the movement.
-
Check that the speaker volume is turned up.
Troubleshooting & FAQs
Q: What Adapter would be compatible with this?
A: This item requires a 2.0A Outdoor Adapter
