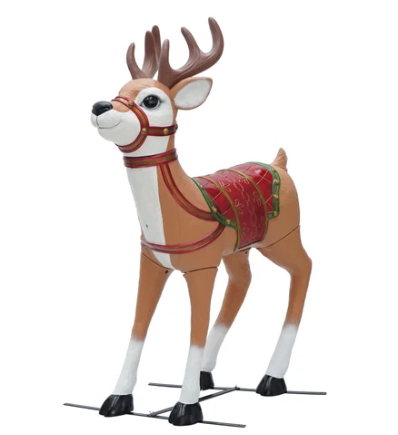

Product Overview

Model Number: 5125506
Height: 6 feet
Motion: Animated movement activates when the built-in infrared (IR) sensor detects someone nearby
Sound: Includes sound effects/music with adjustable volume. Volume can also be turned completely off.
Lighting: Integrated LED lights illuminate during activation. The Try Me mode can operate the lights independently.
Activation: Built-in IR sensor with a range of up to 6.5 ft. and an approximately 80° detection angle.
Indoor/Outdoor item
Power Requirements: 2.0A Outdoor Adapter

Replacement Parts

Limited stock: Parts available while supplies last!

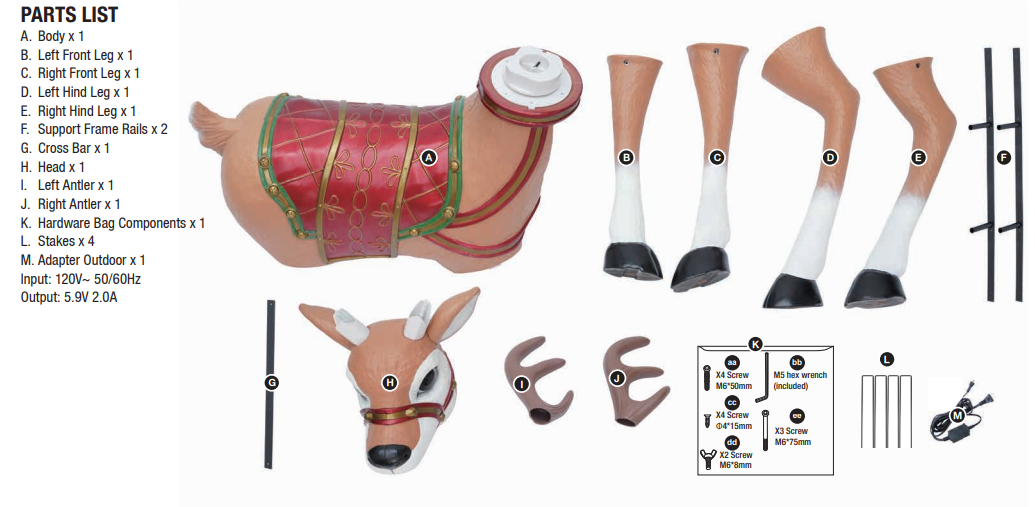

Parts List:

Setting	Description
SENSOR	This switch mode will activate lights, sound, and animation when the Infra-red (IR) sensor is activated and will operate for one activity cycle with each activation. The Infra-red (IR) sensor has a range of up to 2 m/6.5 ft. and will activate when someone comes within an 80-degree angle from left-to-right, as well as from above and below.
O	This switch mode allows the item to be activated only if triggered by using a Step Here Try Me Activation Button (Not Included). The item will operate for one activity cycle with each Try Me activation.
I	This switch mode will only operate the lights of the item.
	Raise or lower the volume using the volume control turn dial, turn all the way down to turn the volume off

Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
Switch on the control box should be set to your preferred mode.
If not functioning properly (ex: head and hands don't light up, head doesn't move), ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
Be sure nothing is blocking movement or caught in moving parts.
Ensure the base surface is flat and nothing blocks the movement.
Check that the speaker volume is turned up.

Q: What Adapter would be compatible with this?

A: This item requires a 2.0A Outdoor Adapter
