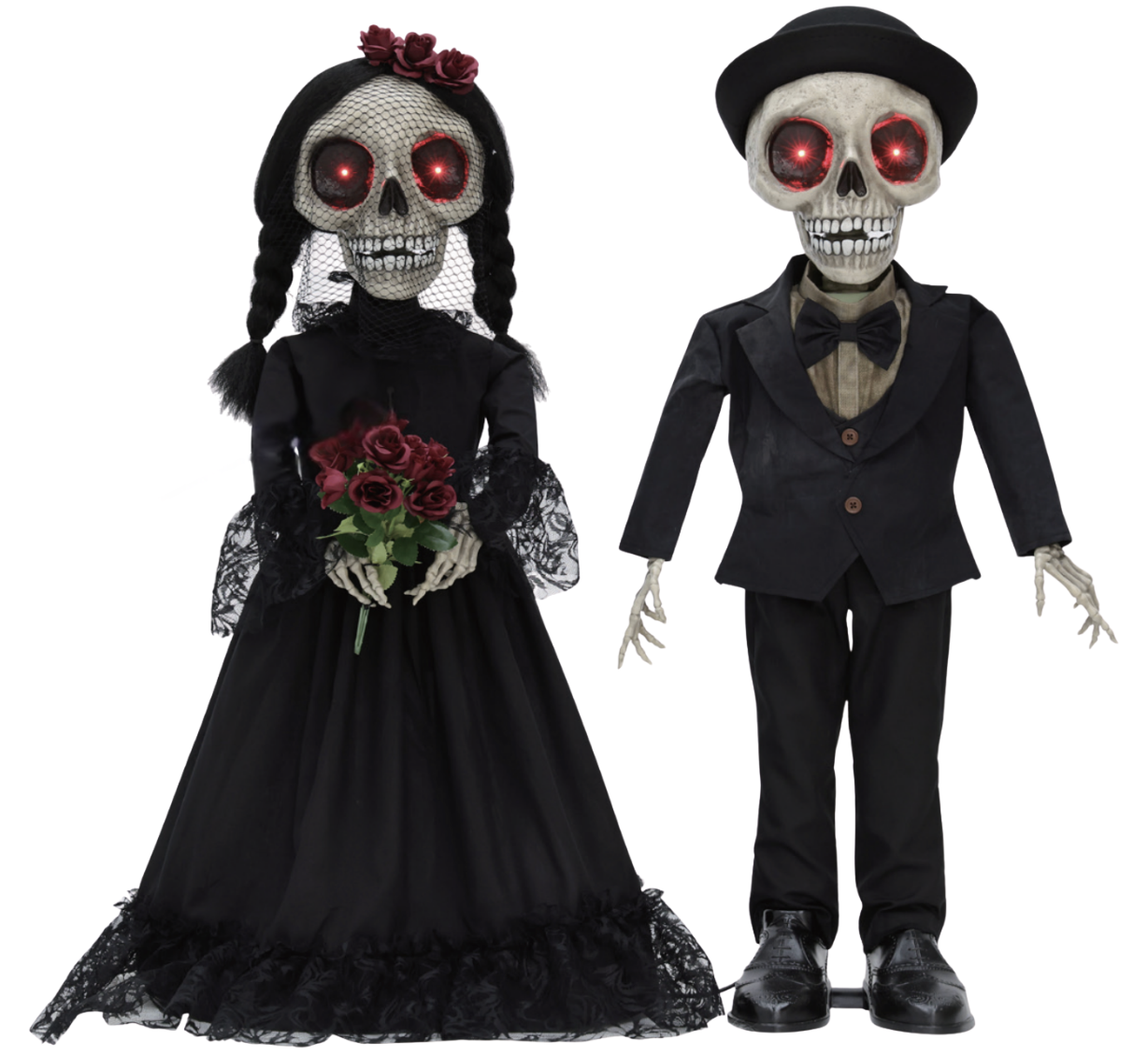

Product Overview
- Model Number: 26SV25330
- Height: 3 feet
- Motion: Mouth moves
- Sound: 6 phrases
- Lighting: LED eyes
- Activation: Infrared motion sensor
- Indoor
- Power Requirements: 1.5A Indoor Adapter or 4 “C 1.5V” button cell batteries.
Replacement Parts
Replacement Parts are coming soon

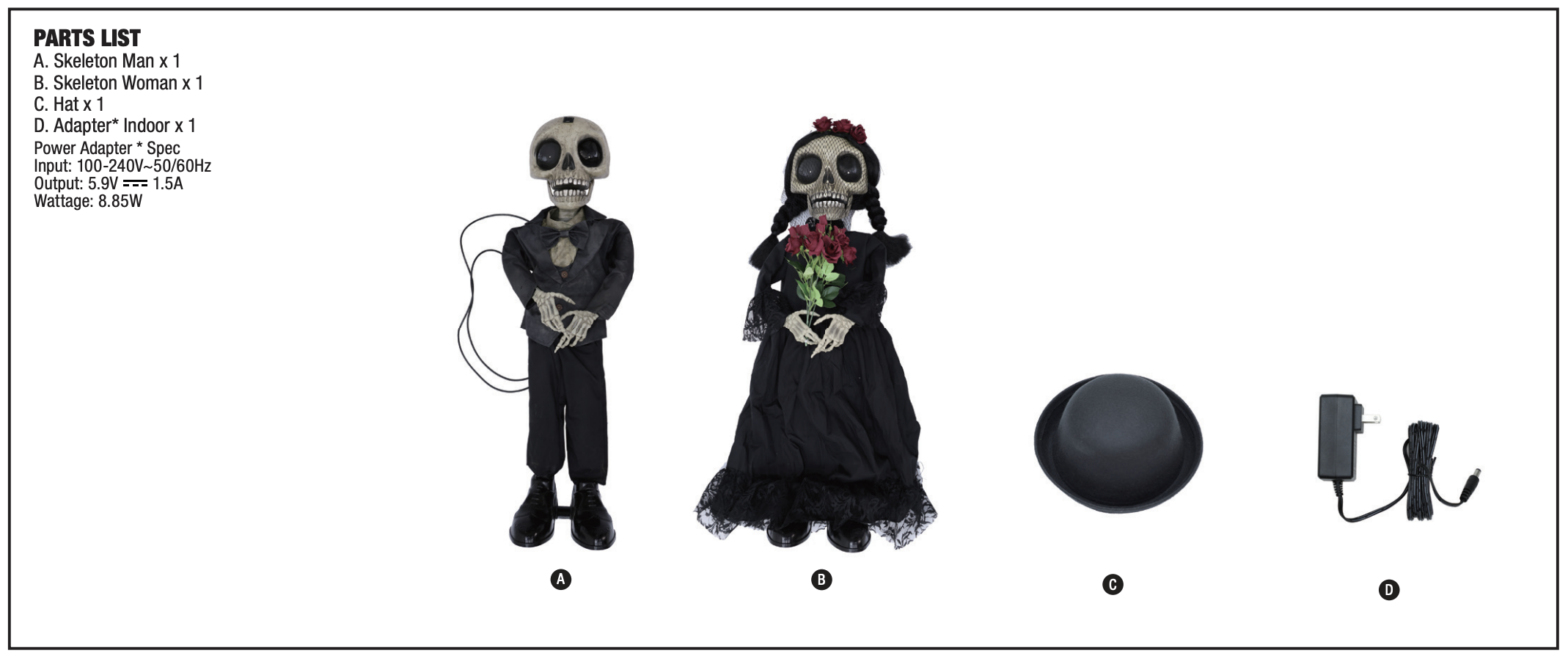

Parts List:
Assembly Instructions
- Recommended 1 adult.
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
Setting |
Description |
| LIGHTS ONLY | Lights activate indefinitely until the setting is changed. No sound or animation. |
| OFF/STEP PAD | All features are off unless activated by an optional Step Pad or Try Me Button(not included). |
| TIMER/SENSOR | Runs a 6-hour active period (lights stay on while motion triggers sound and animation for one cycle) followed by 18 hours off, repeating automatically. The IR sensor detects movement within 13 ft (4 m) and an 80° range. |
| Adjustable dial; turn all the way down to mute. |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- If not functioning properly (ex: eyes don't light up, mouths don't move), ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
- Check that the speaker volume is turned up.
- Indoor item.
Troubleshooting & FAQs
Q: What adapter should I use with 3 ft. Animated LED Til Death Duo?
A: This item requires 1.5A Indoor Adapter or 4 “C 1.5V” button cell batteries.
Q: What is the product box size?
A: The product box size:
- Height 38.5 in.
- Width 11.5 in.
- Depth 11.5 in.
