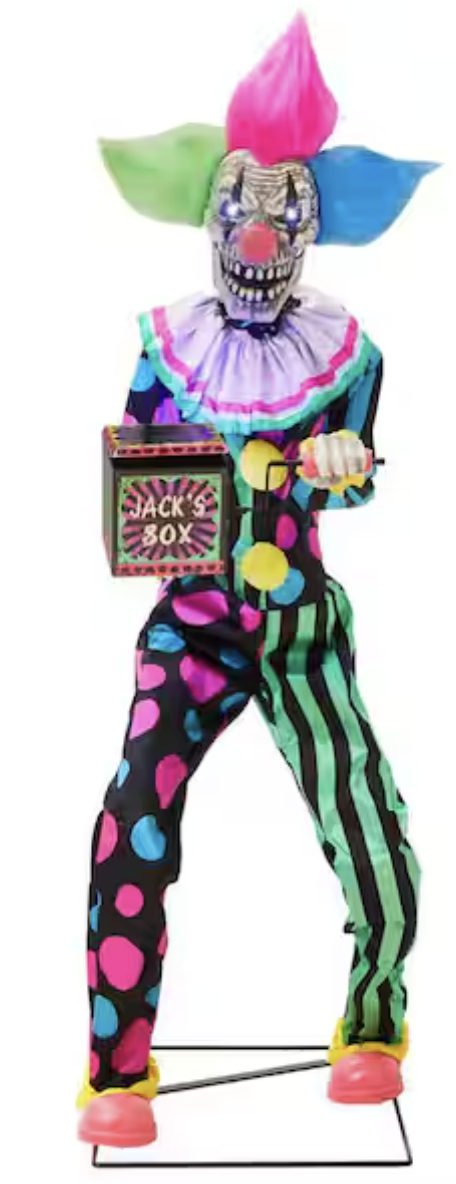

Product Overview

• Model Number: 25SV24821
• Height: 6 feet
• Motion: Mouth moves, pop-up head, left hand winding the box
• Sound: 6 phrases
• Lighting: LED lights illuminate eyes, hair, and costume
• UV-reactive fibers
• Activation: Infrared motion sensor
• Indoor
• Power Requirements: 2A Indoor Adapter

Replacement Parts

Replacement Parts are coming soon

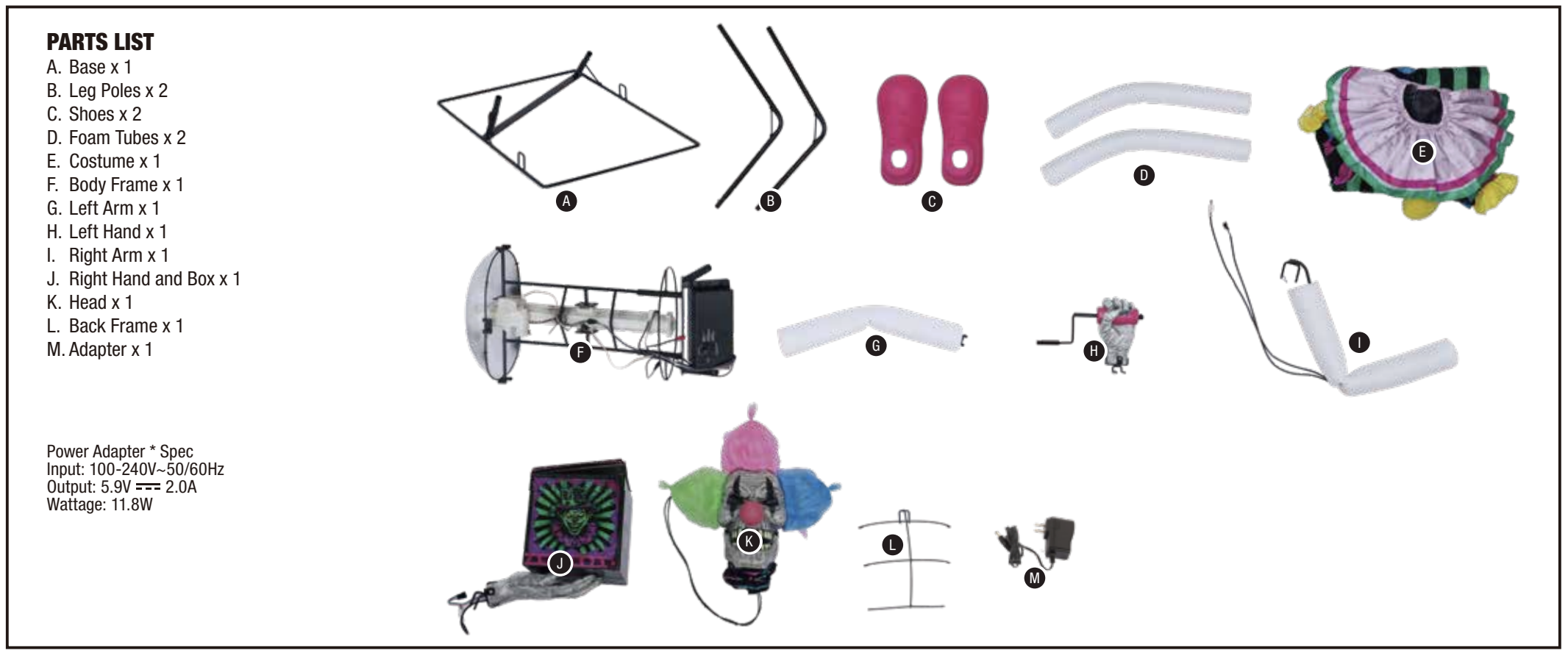

Parts List:

Assembly Instructions

• Recommended 1 adult.
• CAUTION: Do not operate until fully assembled.
• Ensure: All parts are properly connected as shown in the instruction manual
• Download: Parts List and Assembly Instructions PDF

Control Box Settings

Setting	Description
LIGHTS ONLY	Lights activate indefinitely until the setting is changed.
OFF/STEP PAD	All features are off unless activated by an optional Step Pad or Try Me Button(not included).
TIMER/SENSOR	Lights stay on for 6 hours, with sound and animation triggered by motion. Then everything turns off for 18 hours. The IR sensor detects movement within 13 ft (4 m) and an 80° range, repeating until changed.
	Adjustable dial; turn all the way down to mute.

Important Setup Tips

• CAUTION: Stay at least a foot away from the launch mechanism during operation.
• Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
• Switch on the control box should be set to your preferred mode.
• If not functioning properly (ex: Mouth doesn't move, eyes don't light up, head doesn't spring upwards, hand crank doesn't move), ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure the base surface is flat and nothing blocks the movement.
• Check that the speaker volume is turned up.
• Indoor item.

Troubleshooting & FAQs
