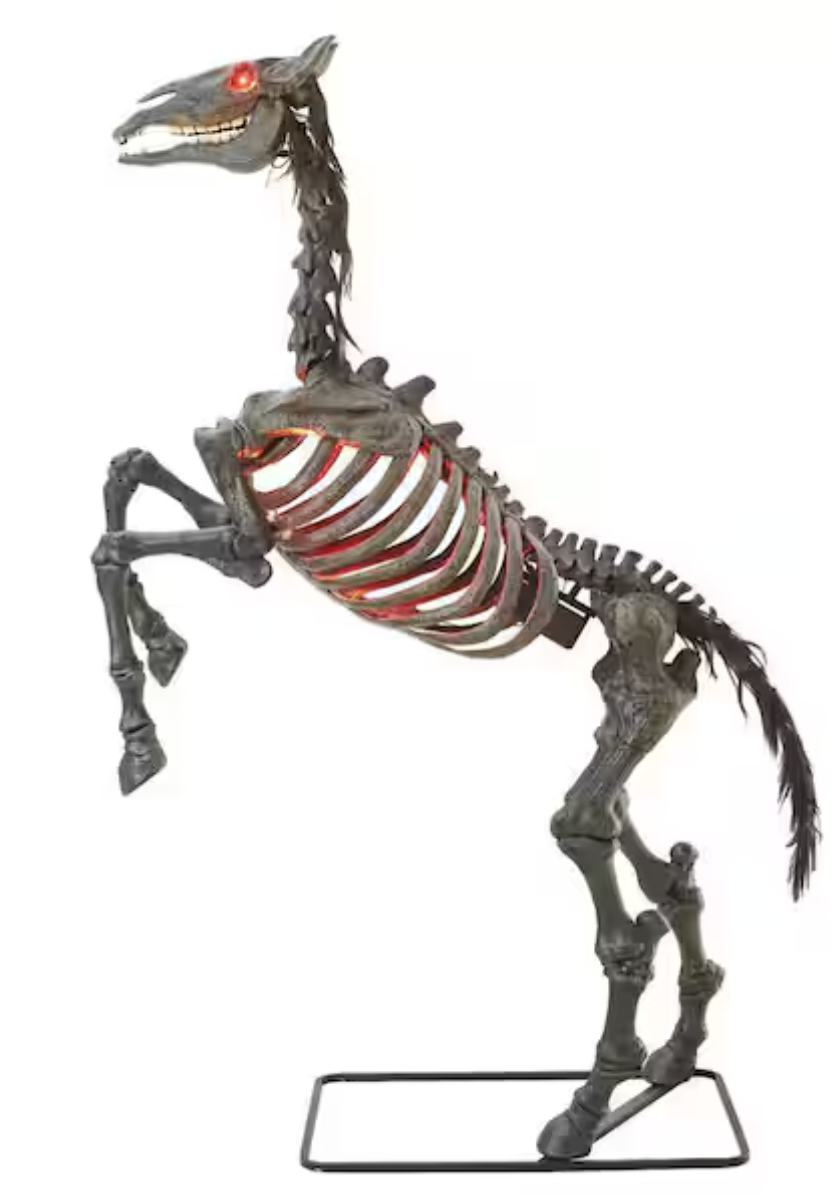

Product Overview
- Model Number: 25SV25060
- Height: 8.5 feet
- Motion: Realistic head moving motion
- Sound: 3 sounds
- Lighting: LED lighting in both the eyes and ribcage
- Activation: Infrared motion sensor
- Indoor/Outdoor
- Power Requirements: 2A Outdoor Adapter
Replacement Parts
Replacement parts are coming soon

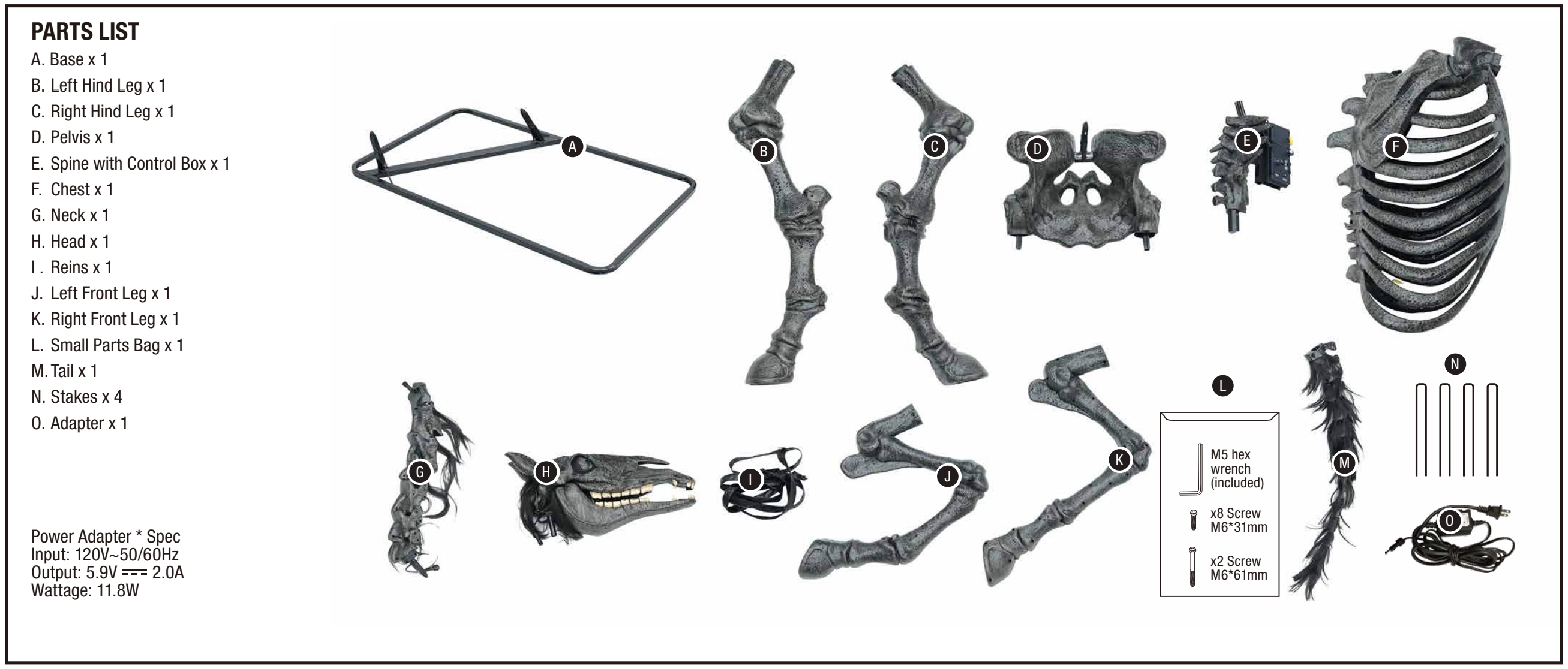

Parts List:
Assembly Instructions
- Recommended 1 adult.
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
Setting |
Description |
| LIGHTS ONLY | Lights activate indefinitely until the setting is changed. |
| TIMER/SENSOR | Runs 6 hours on and 18 hours off, repeating automatically. During the active period, lights stay on while motion triggers sound and animation (one cycle per activation). The IR sensor works within 13 ft (4 m) and an 80° range. |
| OFF/STEP PAD | All features are off unless activated by an optional Step Pad or Try Me Button(not included). |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- If not functioning properly (ex: eyes do not light up), ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
- Be sure nothing is blocking movement or caught in moving parts.
- Ensure the base surface is flat and nothing blocks the movement.
- Check that the speaker volume is turned up.
- The control box has a red light indicator.
- Indoor/Outdoor item.
Troubleshooting & FAQs
Q: What adapter should I use with an 8.5 ft. Giant-Sized LED Undead Horse?
A: This item requires a 2A Outdoor Adapter.
Q: What is the product box size?
A: The product box size:
- Height 27 in.
- Width 43.5 in.
- Depth 23 in.
Q: What should I do if the eyes do not light up?
A: Check and ensure that all cables are connected to their corresponding cable as shown in the instruction sheet (See steps 3.2 and 4.3)
Q: What should I do if my product doesn't turn ON?
A: Check that the adapter is properly connected with the threaded cap fully tightened to the control box and is plugged into a live outlet. (See page 3)
Next, check and ensure that there is power by checking for the red indicator light on the control panel. If there is power, a red indicator light will light up on the control box. If the red light indicator is set to "OFF", please change it to "ON" or "TIMER."
