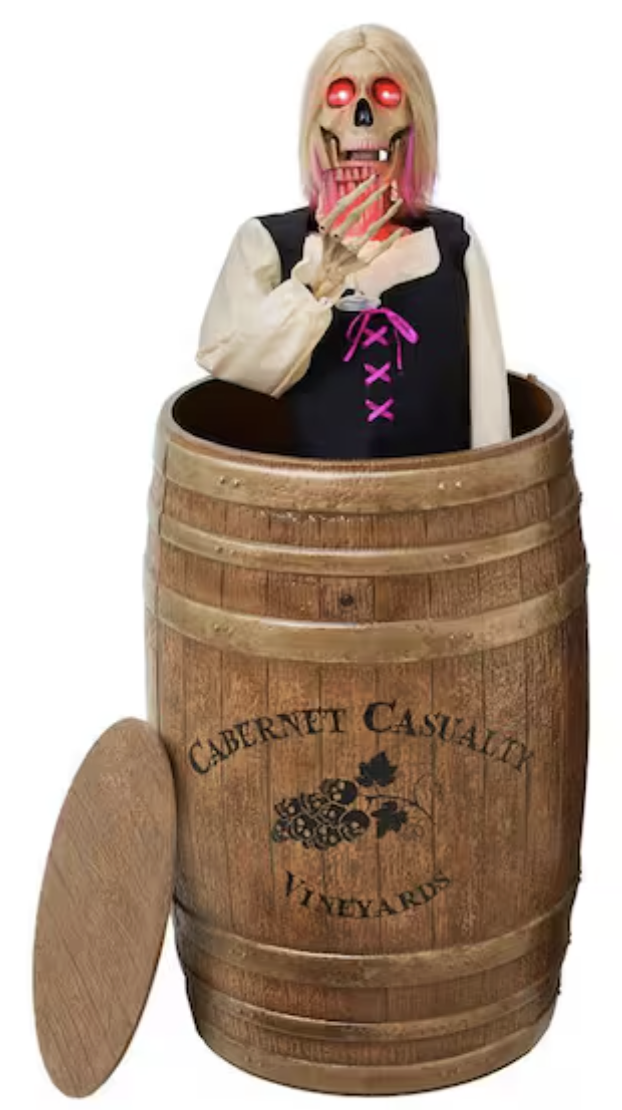

Product Overview

• Model Number: 26SV24841
• Height: 4.5 feet
• Motion: "Pop up" scare factor with moving jaw
• Sound: 8 pre-recorded phrases
• Lighting: LED eyes and wine glass
• Activation: Infrared motion sensor
• Indoor
• Power Requirements: 2A Indoor Adapter

Replacement Parts

Replacement Parts are coming soon

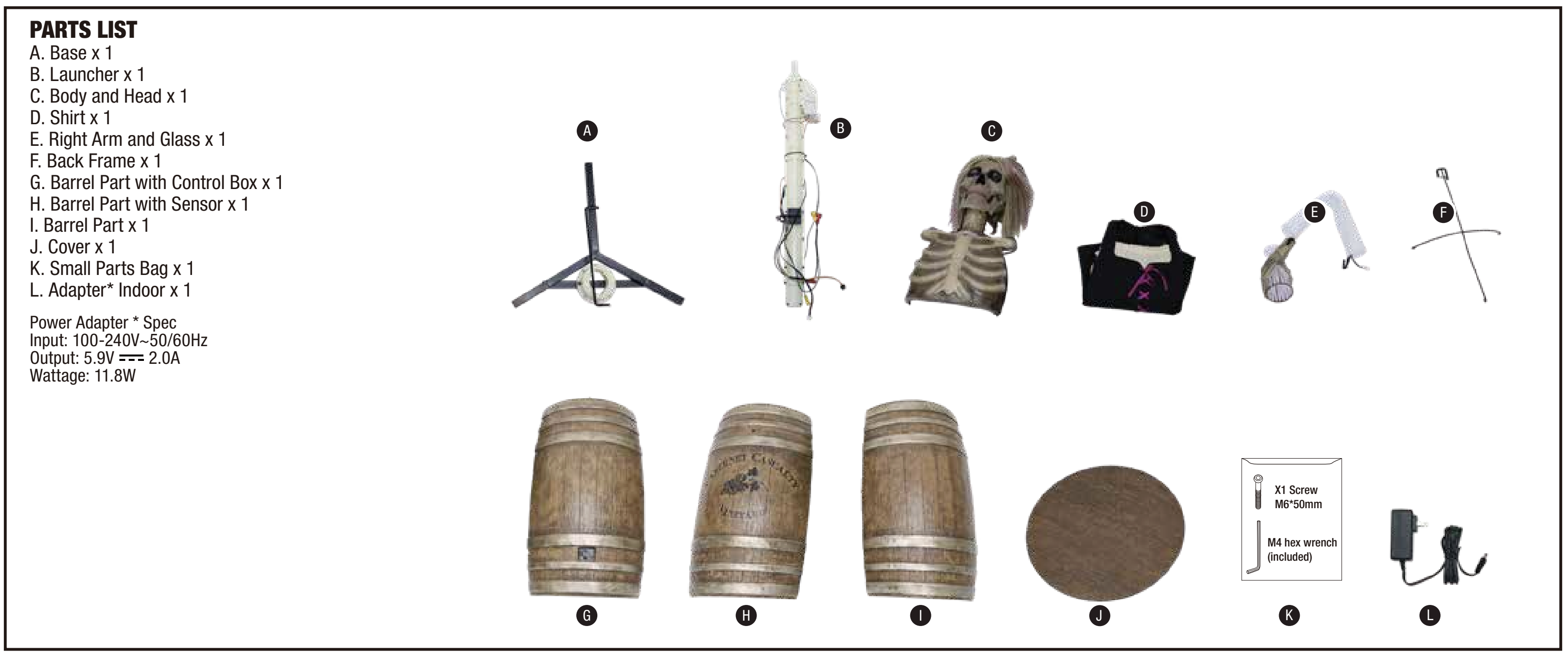

Parts List:

Assembly Instructions

• Recommended 2 adults.
• WARNING: IMPACT RISK - Please be mindful of the launcher! Do not operate without the head assembled to the mechanism. Avoid being within 1 foot of the head during operation.
• Ensure: All parts are properly connected as shown in the instruction manual
• Download: Parts List and Assembly Instructions PDF

Control Box Settings

Setting	Description
LIGHTS ONLY	Lights activate indefinitely until the setting is changed.
OFF/STEP PAD	All features are off unless activated by an optional Step Pad or Try Me Button(not included).
TIMER/SENSOR	Runs a 6-hour active period (lights on; sound and animation triggered by motion) followed by 18 hours off, repeating automatically. The IR sensor detects motion within 13 ft (4 m) and an 80° range, triggering one cycle per activation.
	Adjustable dial; turn all the way down to mute.

Important Setup Tips

• Place the (J) Cover on the barrel when not in use or to display as a barrel prop only. Do not place the (J) Cover askew and operate the item.
• Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
• Switch on the control box should be set to your preferred mode.
• If not functioning properly (ex: Mouth doesn't move, eyes don't light up, body doesn't pop up move), ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure the base surface is flat and nothing blocks the movement.
• Check that the speaker volume is turned up.
• Indoor item

Troubleshooting & FAQs
