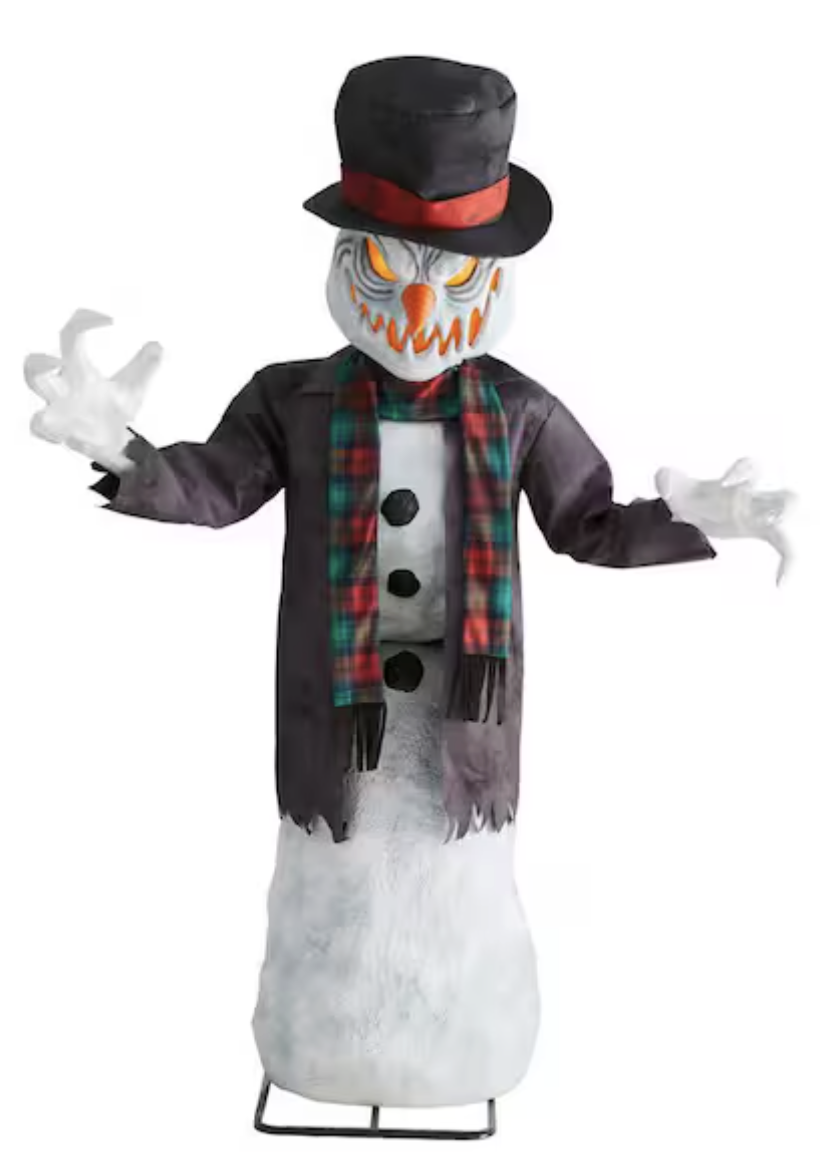

Product Overview

• Model Number: 25SV25203
• Height: 6.5 feet
• Motion: Head moves sideways, arms move up and down
• Sound: 5 different pre-recorded phrases
• Lighting: Mouth and eyes have light up LEDs
• Activation: Infrared motion sensor
• Indoor
• Power Requirements: 2A Indoor Adapter

Replacement Parts

Replacement Parts are coming soon

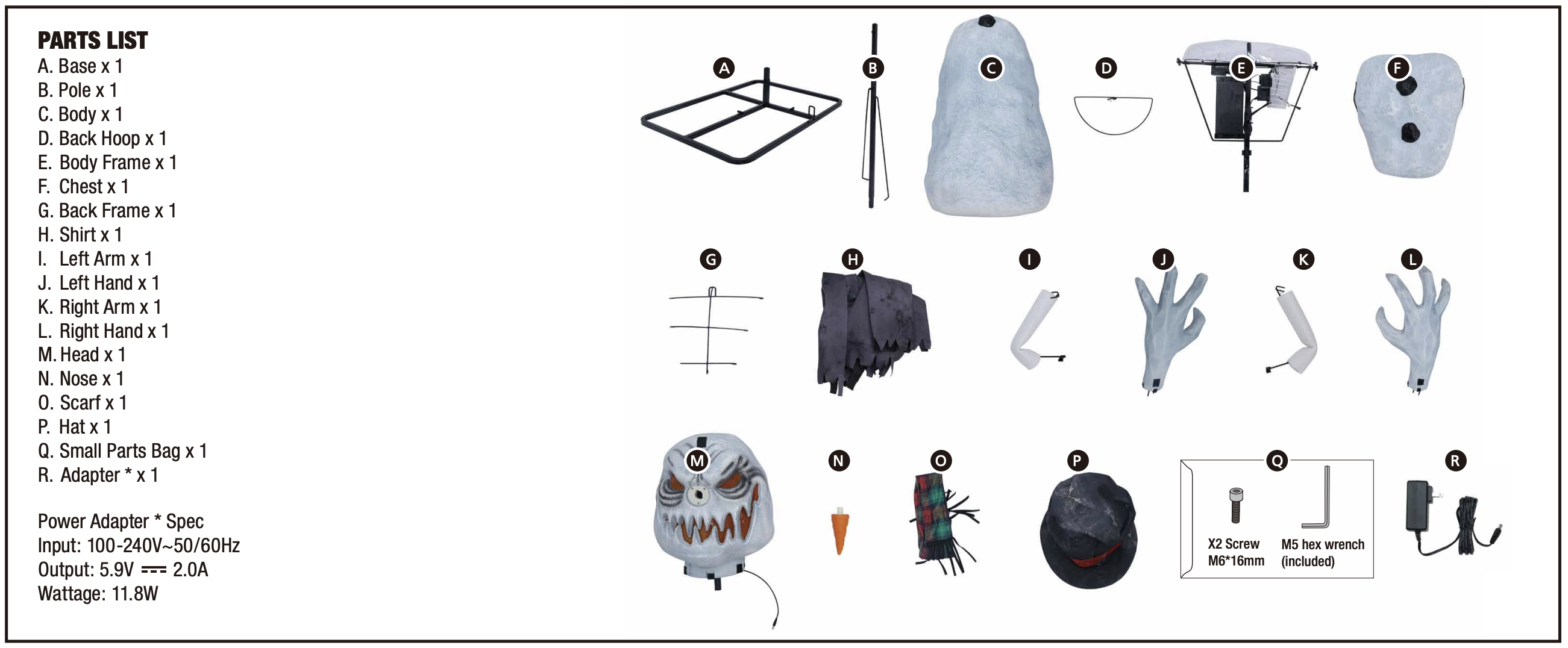

Parts List:

Assembly Instructions

• Recommended 1 adult
• Ensure: All parts are properly connected as shown in the instruction manual
• Download: Parts List and Assembly Instructions PDF

Control Box Settings

Setting	Description
LIGHTS ONLY	Lights activate indefinitely until the setting is changed. No sound or animation.
OFF/STEP PAD	All features are off unless activated by an optional Step Pad or Try Me Button(not included).
TIMER/SENSOR	Lights stay on for 6 hours, with animation and sound triggered by motion. Then everything turns off for 18 hours. The IR sensor detects movement within 13 ft (4 m) and an 80° range, and the cycle repeats until changed.
	Adjustable dial; turn all the way down to mute.

Important Setup Tips

• Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
• Switch on the control box should be set to your preferred mode.
• If not functioning properly (ex:  head and arms don't move, eyes and mouth are not illuminated), ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure the base surface is flat and nothing blocks the movement.
• Check that the speaker volume is turned up.
• Be sure nothing is blocking the sensor. Prop only speaks on Sensor Timer Mode or when activated with a Step Pad. See Operations Instructions page 4 for complete details.
• Indoor item.

Troubleshooting & FAQs
