Product Overview
- Model Number: 25SV25167
- Height: 5 ft.
- Lighting: LED lights
- Indoor/Outdoor item
-
Power Requirements: 1.5A Outdoor Adapter
Replacement Parts
Purchase Replacement Parts here

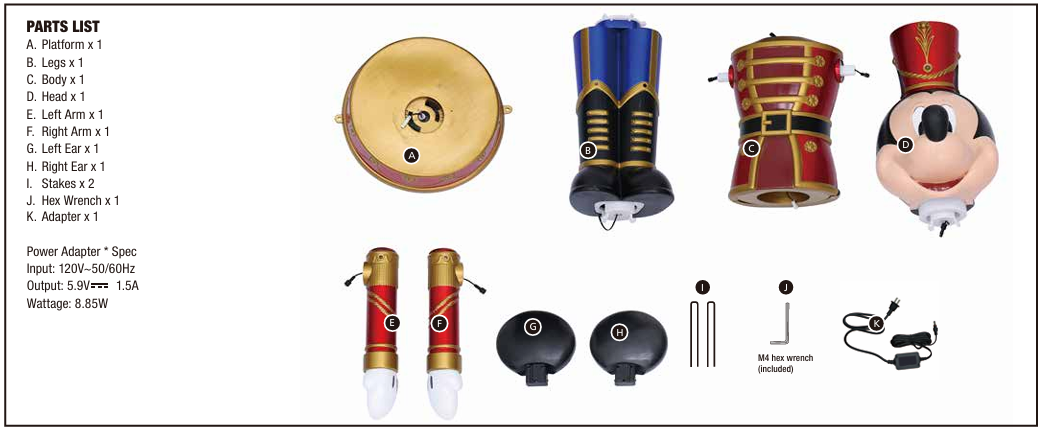

Parts List:
Assembly Instructions
- Recommended: 1 adult
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
| Setting | Description |
| LIGHTS ONLY | This switch mode will continuously operate the lights of the item. No sound. |
| TIMER | Operates lights and sound for 6 hours, then automatically shuts off for 18 hours. Repeats daily. |
| OFF/STEP PAD | All features are off unless activated by an optional Step Pad or Try Me Button (not included). |
| Adjustable dial; turn all the way down to mute. |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
- Ensure the base surface is flat.
- The control box has a red light indicator.
- Indoor/Outdoor item.
Troubleshooting & FAQs
Q: What adapter should I use with 5 ft. LED Mickey Nutcracker?
A: This item requires 1.5A Outdoor Adapter.
Q: Where is the speaker located in the 5 ft. LED Mickey Nutcracker?
A: The speaker is located in the control box.
Q: What's the size of the shoulder bolt?
A: M5×30mm
