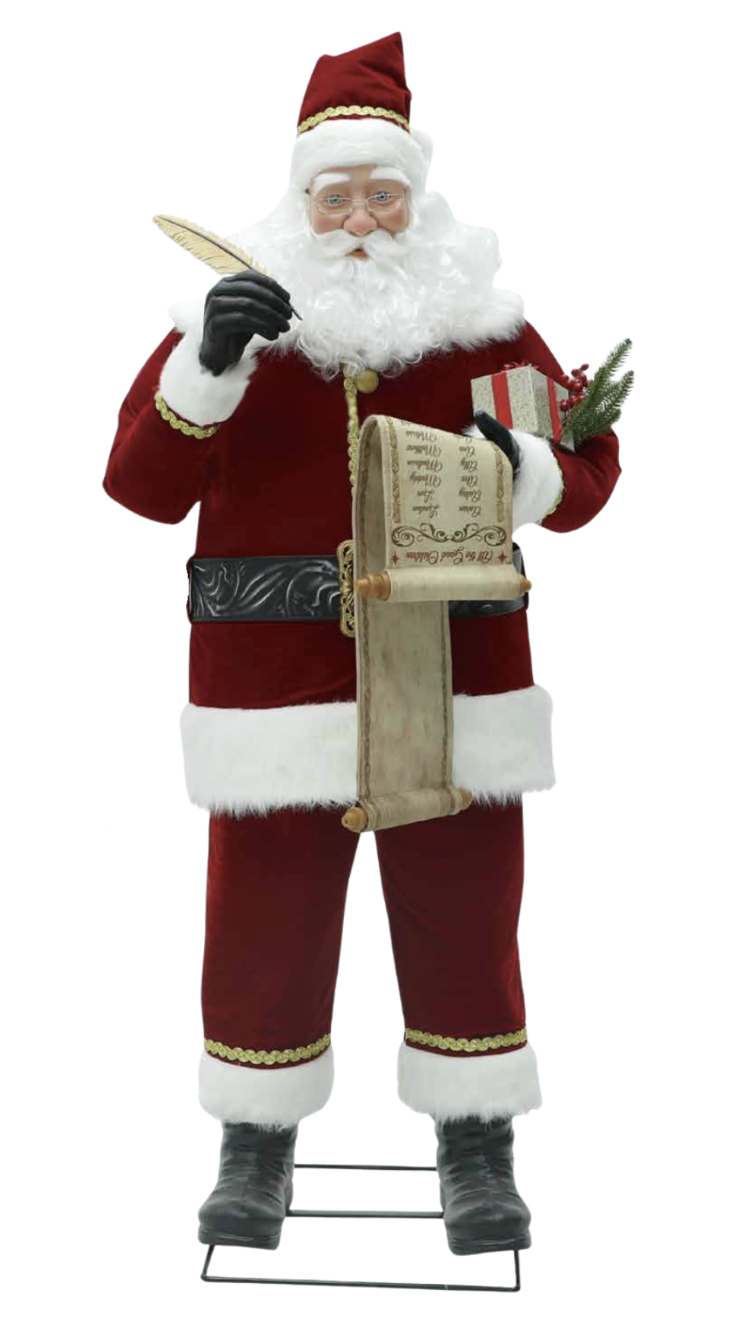

Product Overview

• Model Number: 24SV24397
• Height: 6 ft.
• Motion: Head, mouth, body
• Sound: Reading the list
• Activation: Infrared motion sensor
• Indoor item

• Power Requirements: 2A Indoor Adapter



Replacement Parts

This product is no longer supported by our Parts Replacement Program.

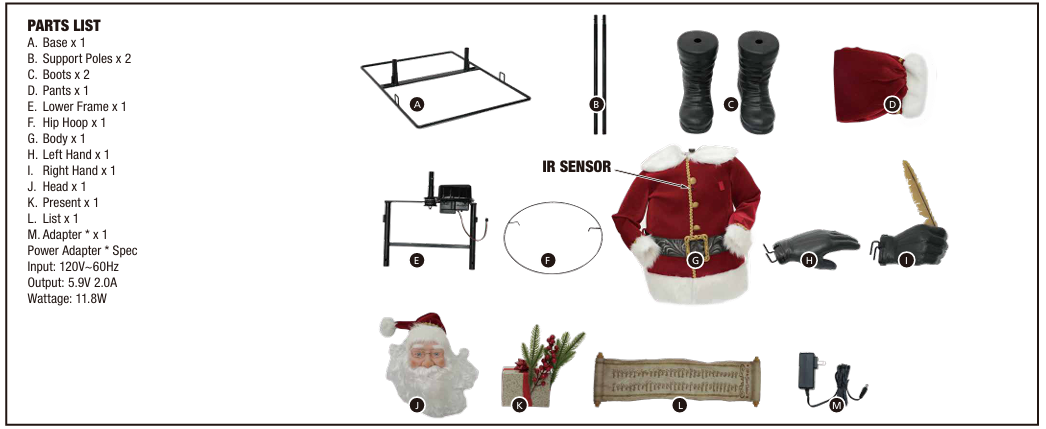

Parts List:

Assembly Instructions

• Recommended: 1 adult
• Ensure: All parts are properly connected as shown in the instruction manual
• Download: Parts List and Assembly Instructions PDF

Control Box Settings

Setting	Description
SENSOR	This mode activates sound and animation for one cycle whenever the IR sensor detects motion within 4 m (13 ft) and an 80° range in all directions.
O	This mode activates the item only when triggered by a Step Here Try Me Pad (not included) and runs one audio cycle per activation. Otherwise, it remains off.
I	This switch mode will continuously operate the sound and animation of the item.
	Adjustable dial; turn all the way down to mute.

Important Setup Tips

• Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
• Switch on the control box should be set to your preferred mode.
• If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
• Ensure the base surface is flat.
• Indoor item.
