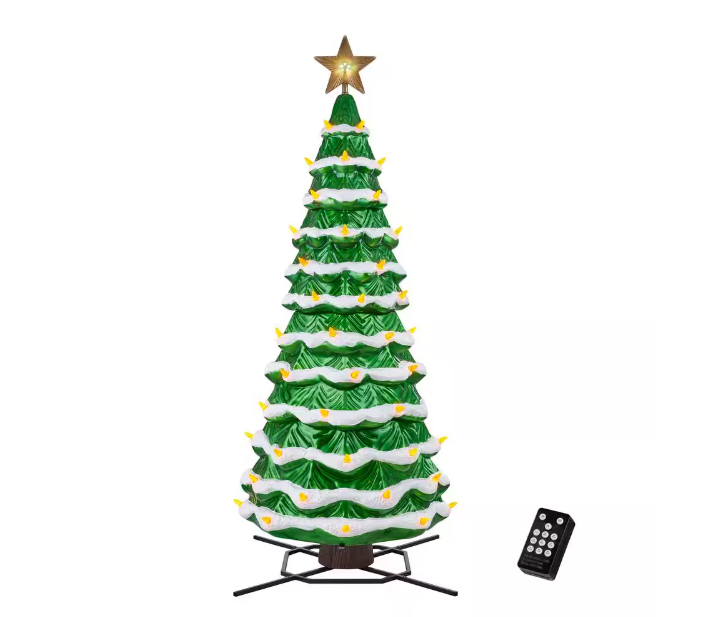

Product Overview
- Model Number: 24SV23800
- Height: 8.5 ft.
- Lighting: LED lights
- Indoor/Outdoor item
-
Power Requirements: 1.5A Outdoor Adapter, Remote Requires 2 x 1.5V AAA batteries
Replacement Parts
This product is no longer supported by our Parts Replacement Program.

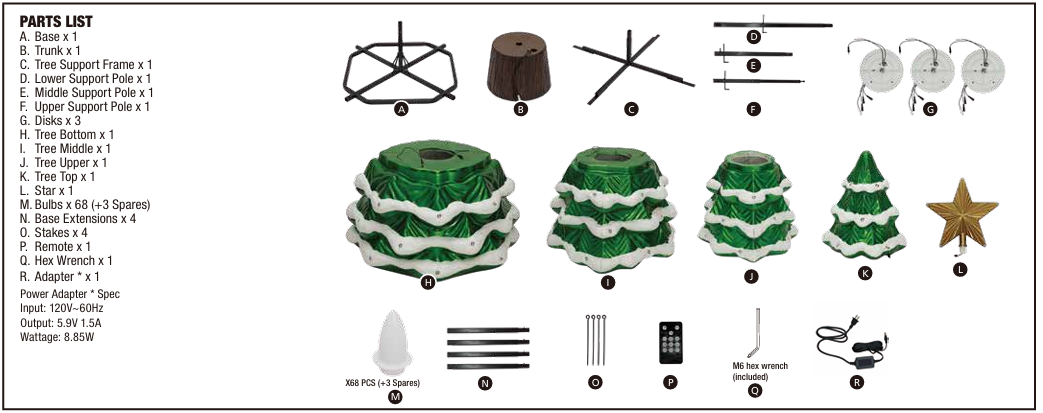

Parts List:
Assembly Instructions
- Recommended: 2 adults
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
Setting |
Description |
ON |
This switch mode will continuously operate the lights of the item. |
TIMER |
The lights of the item are on for a 6 hour, then off for 18 hour period. This cycle continues indefinitely until the setting is changed. |
OFF |
This mode activates the item only when triggered by a Step Pad or Try Me Button (not included) and runs one activity cycle per activation. Otherwise, it remains off. |
LED MODE |
Light Functions: Warm White Steady, Warm White Flashing. Warm White Slow Fade, Multi Steady, Multi Flashing, Multi Slow Fade, Warm White/Multi Alternating and Warm White/Multi Slow Fade |
Remote
| Setting | Description |
| ON | Switches Tree Lights On. |
OFF |
This mode turns the Tree Lights off and allows activation only through a Step Pad or Try Me Button (not included). The item runs one activity cycle per activation and otherwise remains off. |
| FN | Toggles the function to the next light mode. |
Demo |
Switches through all different light modes, showing each for 10 seconds. |
|
WW Steady (Warm White Steady) WW Slow Fade (Warm White Slow Fade) MLT Flashing (Multi Flashing) WW MLT SEQ (Warm White/Multi Alternating) |
WW Flashing (Warm White Flashing) MLT Steady (Multi Steady) MLT Slow Fade (Multi Slow Fade) WW MLT CC (Warm White/Multi Slow Fade) |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
- Ensure the base surface is flat.
- Indoor/Outdoor item.
Troubleshooting & FAQs
Q: What adapter should I use with 8.5 ft. Giant-Sized Color Changing LED Tree?
A: This item requires 1.5A Outdoor Adapter, 2 x 1.5V AAA batteries for remote.
Q: What's the size of the screw from pole D, E and F?
A: D Pole - M6 x 3/4" Length
E Pole - M6 x 3/4" Length
F Pole - 5/16 diameter x 4" Length
