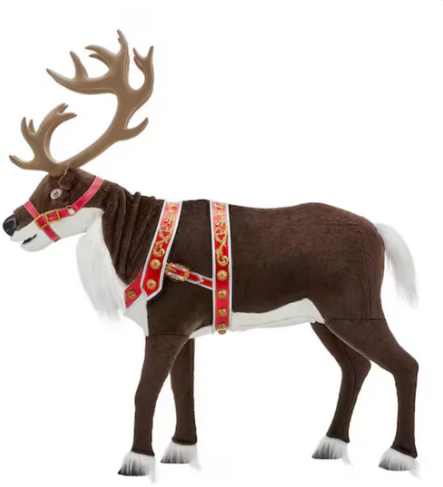

Product Overview
- Model Number: 24SV24394
- Height: 4.5 ft.
- Motion: Head moves side to side
- Sound: Festive music
- Activation: Infrared motion sensor
- Indoor item
-
Power Requirements: 2A Indoor Adapter
Replacement Parts
Purchase Replacement Parts here
Limited stock: Parts available while supplies last!

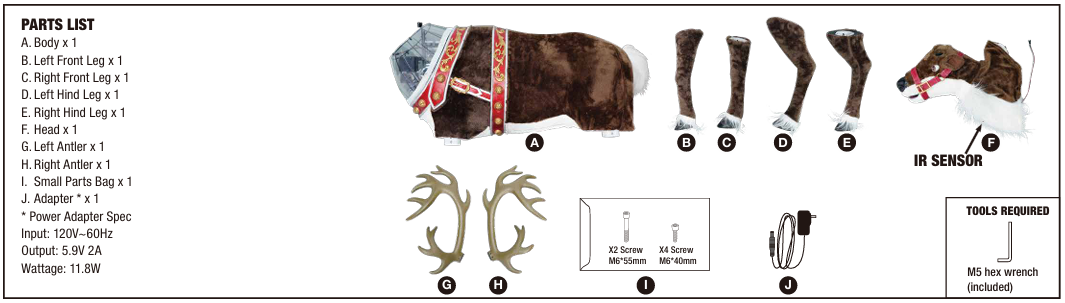

Parts List:
Assembly Instructions
- Recommended: 1 adult
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
| Setting | Description |
| ON | This switch mode will continuously operate the sound and animation of the item. |
| SENSOR | This mode will activate sound and animation when the sensor is activated. |
| OFF/STEP PAD | All features are off unless activated by an optional Step Pad or Try Me Button (not included). |
| Adjustable dial; turn all the way down to mute. |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
- Ensure the base surface is flat.
- Indoor item.
Troubleshooting & FAQs
Q: What adapter should I use with 4.5 ft. Animated Reindeer?
A: This item requires 2A Indoor Adapter
Q: What motor should I get for the head movement?
A: Motor with multicolored wire controls up and down movement.
Motor with white wire controls side to side movement.
