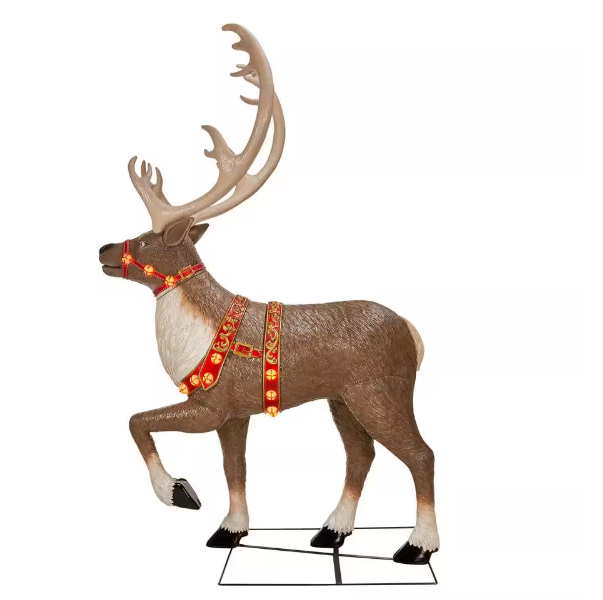

Product Overview
- Model Number: 24SV24393
- Height: 8.5 ft.
- Lighting: LED lights
- Indoor/Outdoor item
- Power Requirements: 1.5A Outdoor Adapter
Replacement Parts
This product is no longer supported by our Parts Replacement Program.

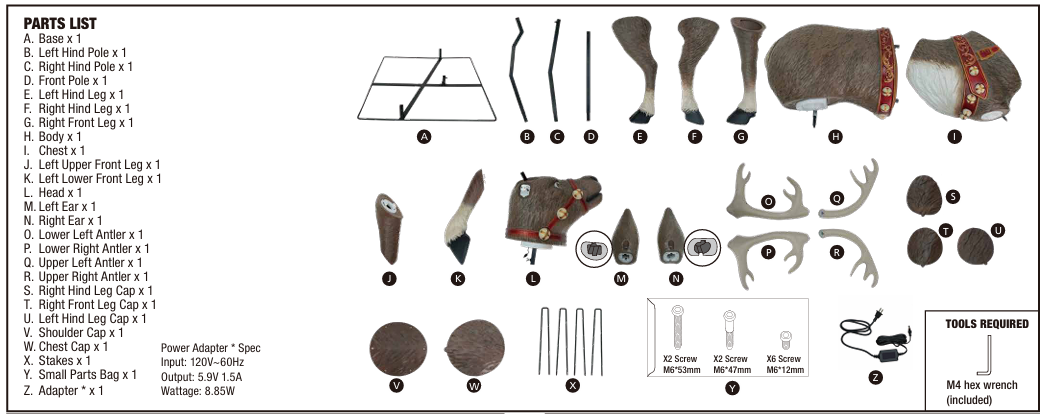

Parts List:
Assembly Instructions
- Recommended: 1 adult
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Watch The Home Depot Assembly Instruction Video:
Control Box Settings
Setting |
Description |
SENSOR |
This mode triggers lights, sound, and animation for one audio cycle when the Infra-red (IR) sensor detects motion. The sensor covers an 80-degree angle from all directions and has a range of up to 2 meters (6.5 feet). |
OFF/STEP PAD |
All features are off unless activated by an optional Step Pad or Try Me Button (not included). |
TIMER |
Operates lights for 6 hours, then automatically shuts off for 18 hours. Repeats daily. |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
- Ensure the base surface is flat.
- The control box has a red light indicator.
- Indoor/Outdoor item.
Troubleshooting & FAQs
Q: What adapter should I use with 8.5 ft. Giant-Sized LED Towering Reindeer?
A: This item requires 1.5A Outdoor Adapter.
Q: What's the size of the wingnut scews?
A: Wingnut Screw: M5 10 mm
