Product Overview

• Model Number: 280-5199
• Height: 12 ft.
• Motion: head moves
• Sound: creepy music
• Lighting: LED eyes
• Activation: Infrared motion sensor
• Indoor/Outdoor item
• Power Requirements: 2A Outdoor Adapter

Replacement Parts

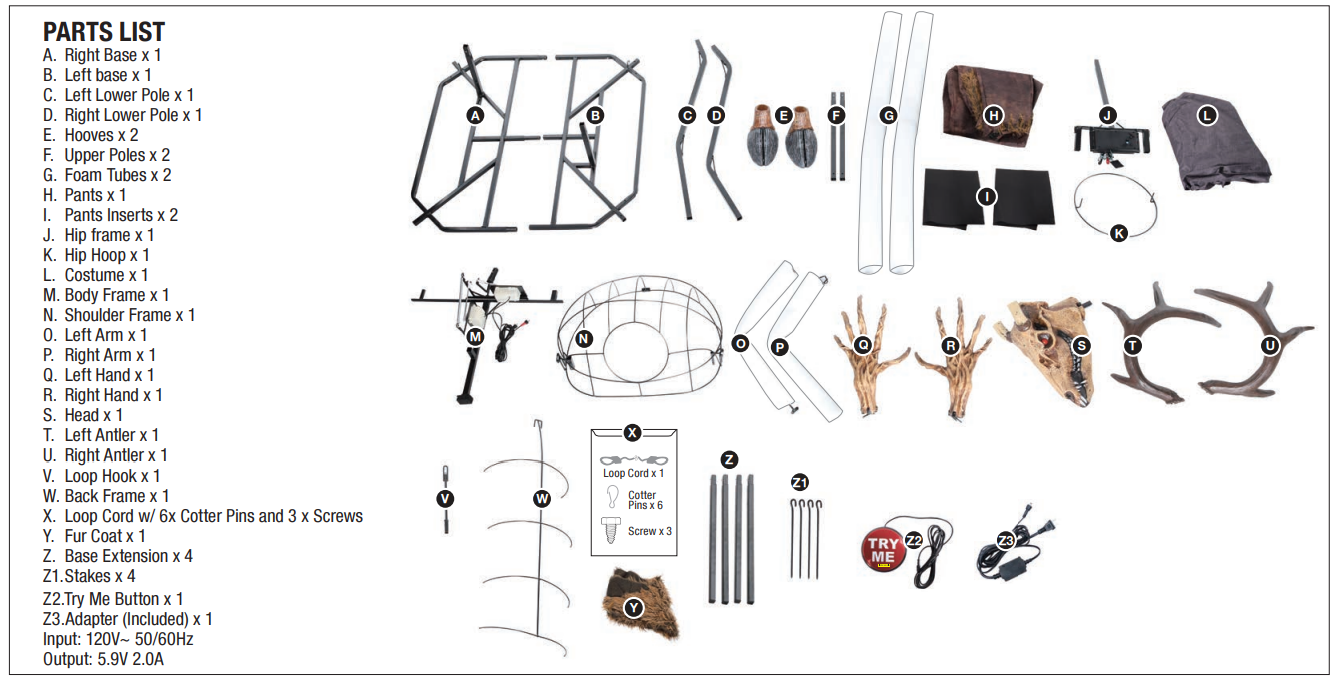

Parts List:

Assembly Instructions

• Recommended: At least 1 adult
• Ensure: All parts are properly connected as shown in the instruction manual
• Download: Parts List and Assembly Instructions PDF

Control Box Settings

Setting	Description
SENSOR	Lights, sound, and animation activate when the IR sensor detects motion, running one full cycle per activation. The sensor range is up to 2 m / 6.5 ft. within an 80° angle (side-to-side, above, and below).
OFF/STEP PAD	Activates one cycle of lights, animation and sound when triggered by a Step Pad or Try Me Button (not included). Remains off otherwise.
ON	Continuously runs lights, sound, and animation until the settings are changed.
	Adjustable dial; turn all the way down to mute.

Important Setup Tips

• Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
• Switch on the control box should be set to your preferred mode.
• If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure the base surface is flat and nothing blocks the movement.
• Check that the speaker volume is turned up.
• Indoor/Outdoor item.

Troubleshooting & FAQs
