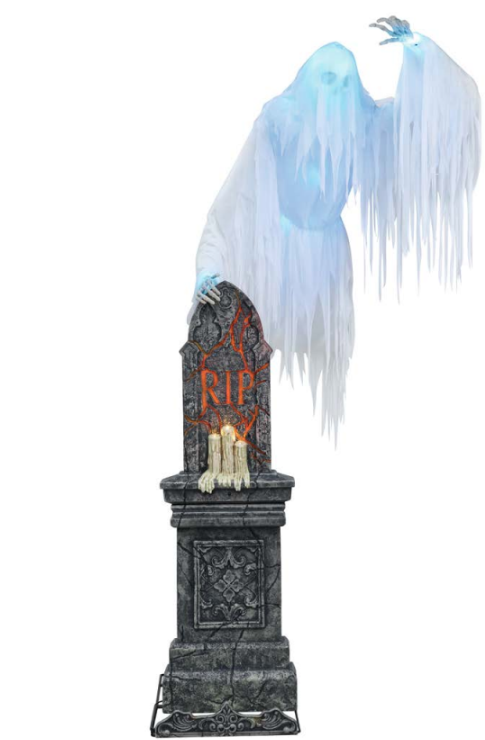

Product Overview

Model Number: 5125330
Height: 9 ft.
Motion: ghost hovers over the tombstone back and forth
Sound: speaks few different phrases
Lighting: ghost skull, torso and hands glow with blue spectral light, tombstone has flickering effect with LED lights
Activation: Infrared motion sensor
Indoor/Outdoor item
Power Requirements: 2A Outdoor Adapter

Replacement Parts

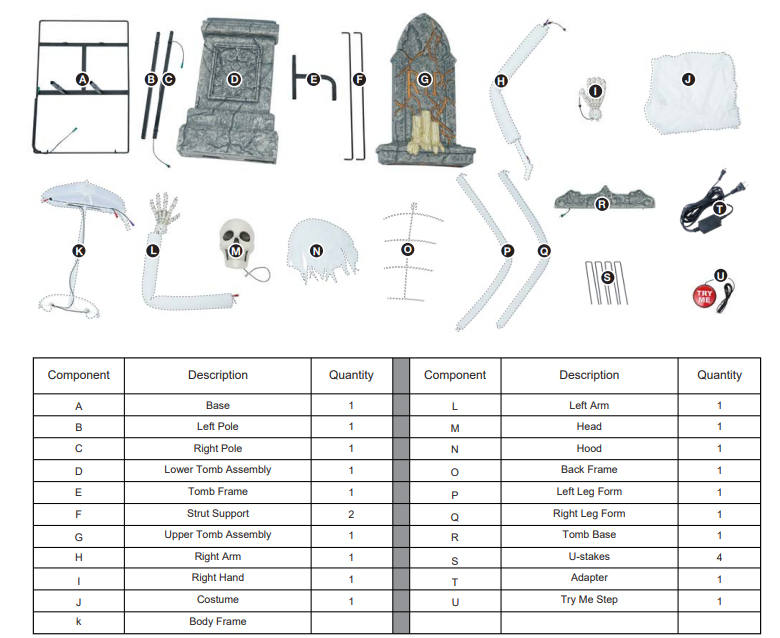

Parts List:

Setting	Description
SENSOR	Lights, sound, and animation activate when the Infra-red (IR) sensor detects motion. Each trigger runs one full cycle. The sensor range is up to 2 m / 6.5 ft. within an 80° angle.
OFF/STEP PAD	Activates one cycle of lights, animation and sound when triggered by a Step Pad or Try Me Button (not included). Remains off otherwise.
ON	Continuously runs lights, sound, and animation until the settings are changed.
	Adjustable dial; turn all the way down to mute.

Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
Switch on the control box should be set to your preferred mode.
If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
Be sure nothing is blocking movement or caught in moving parts.
Ensure the base surface is flat and nothing blocks the movement.
Check that the speaker volume is turned up.
Indoor/Outdoor item.

Where is the motor located?

A: The motor is located in part G - Upper Tomb Assembly.

What power adapter should I use with 9 ft. Animated Ghostly Skeleton?

A: This item requires 2A Outdoor Adapter.
