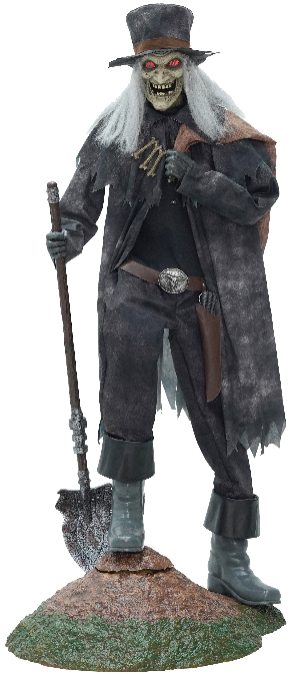

Product Overview

• Model Number: 25SV24836
• Height: 6.5 feet
• Motion: Skull, Mouth
• Lighting: LED lights
• Activation: Infrared motion sensor
• Outdoor item
• Power Requirements: 3A Outdoor Adapter

Replacement Parts

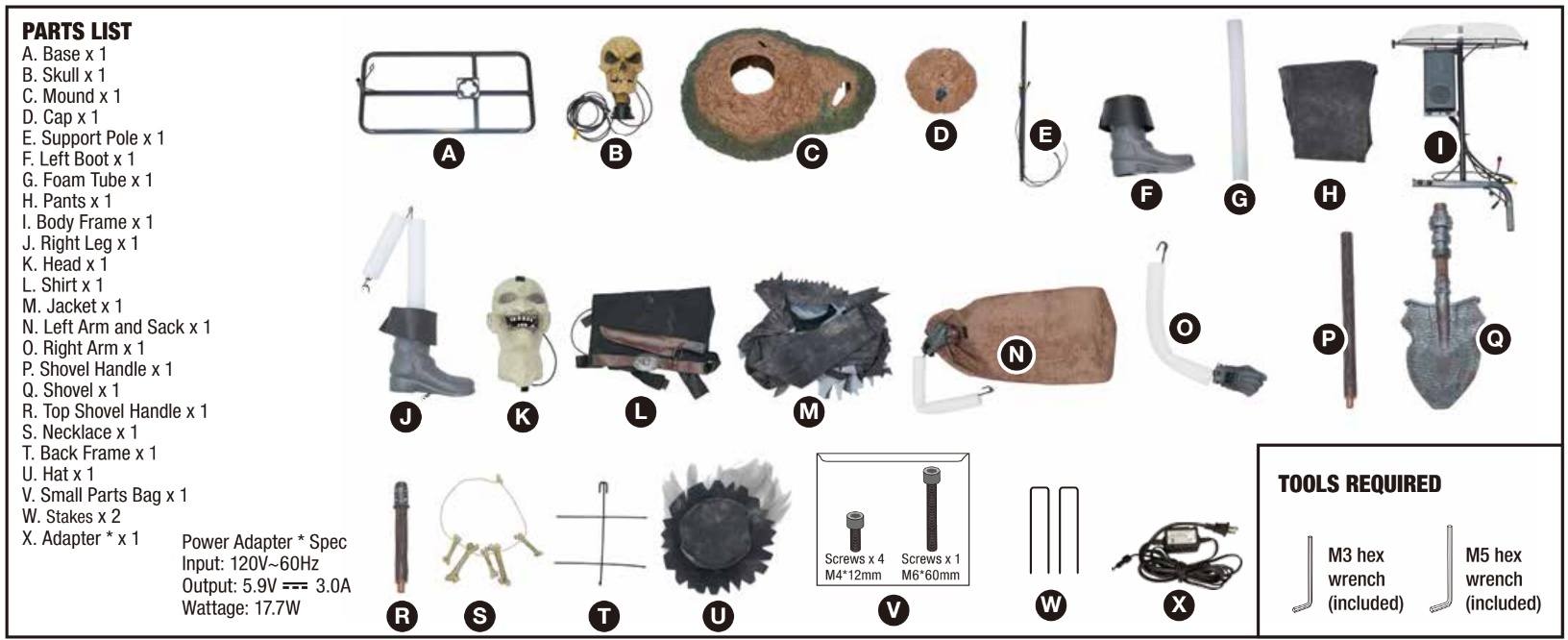

Parts List:

Assembly Instructions

• Recommended: 1 adult
• Ensure: All parts are properly connected as shown in the instruction manual
• Download: Parts List and Assembly Instructions PDF

Control Box Settings

Setting	Description
LIGHTS ONLY	Lights are activated indefinitely.
OFF/STEP PAD	Activates one audio cycle when triggered by a Step Here Try Me Pad (not included). Stays off otherwise.
TIMER/SENSOR	In this mode, lights stay on for 6 hours while sound and animation activate when the Infra-red (IR) sensor is triggered. The item then turns off for 18 hours, repeating the 6H ON/18H OFF cycle continuously. The sensor detects motion within an 80-degree range up to 4 meters (13 feet).
	Adjustable dial; turn all the way down to mute.

Important Setup Tips

• Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
• Switch on the control box should be set to your preferred mode.
• If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
• Ensure the base surface is flat and nothing blocks the sensor.
• Check that the speaker volume is turned up.
• The control box has a red light indicator.
• Outdoor item.

Troubleshooting & FAQs
