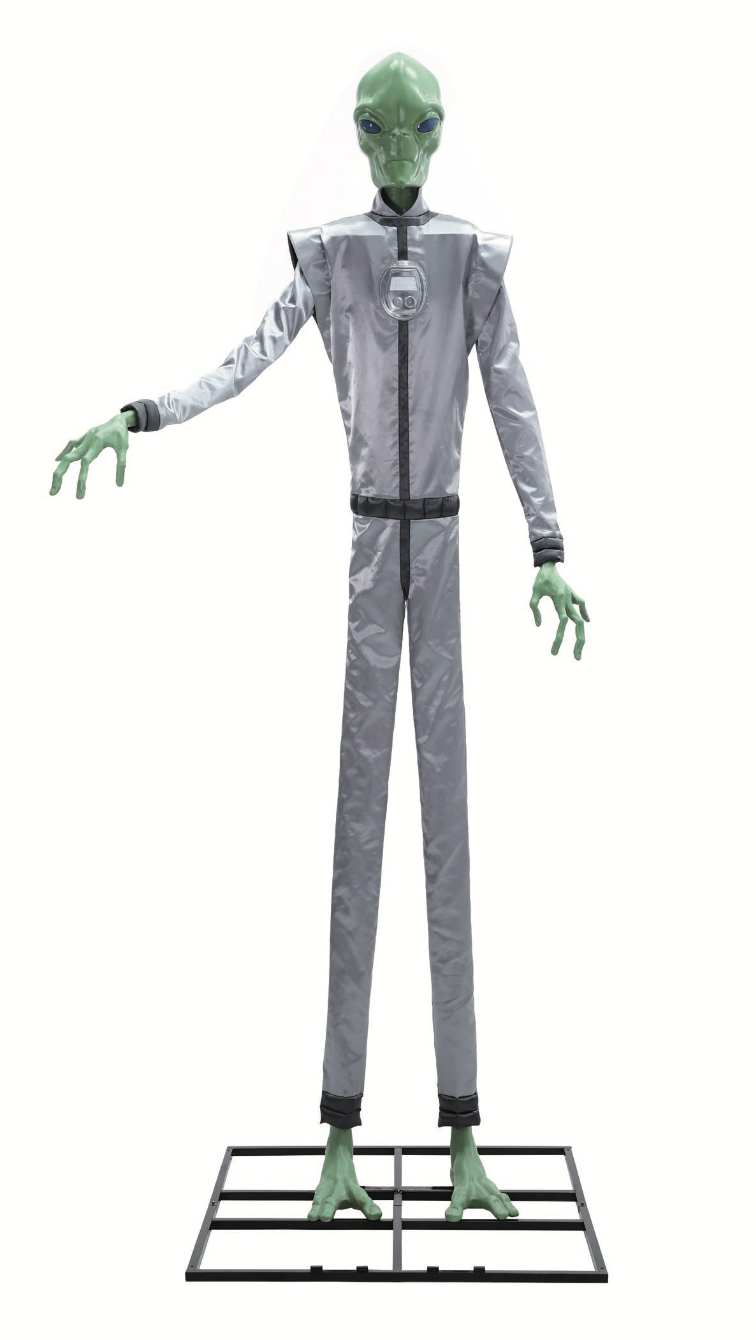

Product Overview

• Model Number: 5125205
• Height: 10 ft.
• Motion: head turns and tilts, eyes look around
• Sound: characteristic alien voice and phrases
• Lighting: 4 LEDs on forehead, chest with blinking LED lights, two right hand fingertips glow with light, LED eyes
• Activation: infrared motion sensor
• Indoor/Outdoor
• Power Requirements: 3A Outdoor Adapter

Replacement Parts

This product is no longer supported by our Parts Replacement Program.

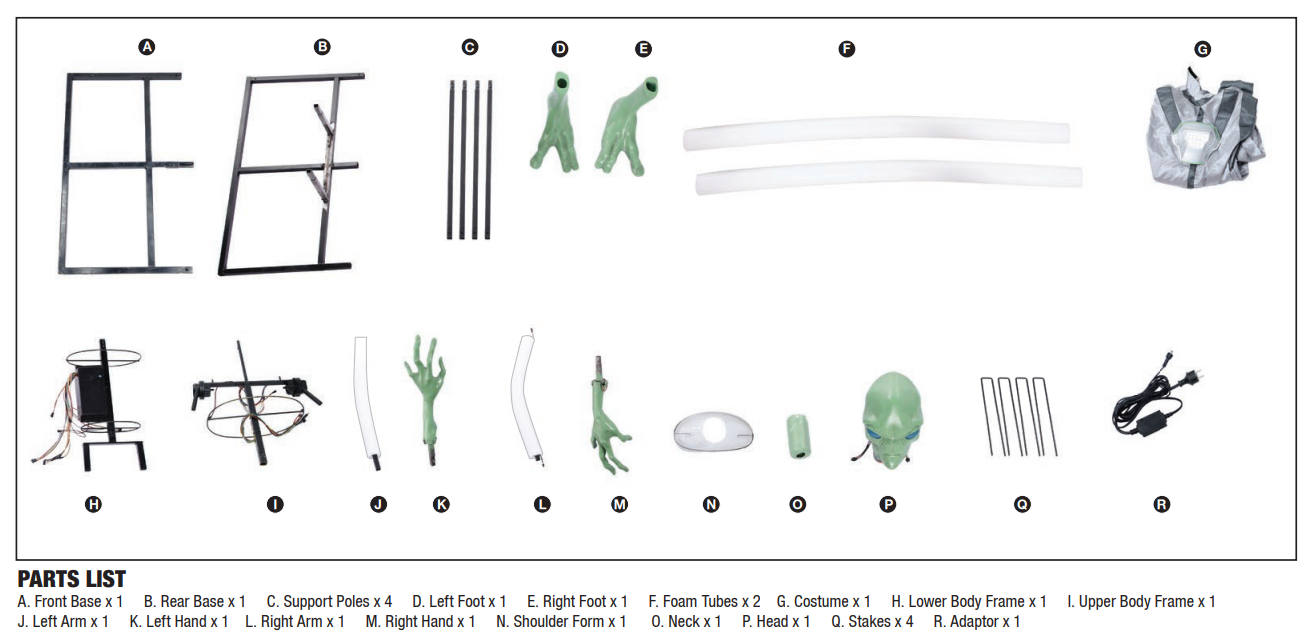

Parts List:

Assembly Instructions

• Recommended 1 adult.
• Ensure: All parts are properly connected as shown in the instruction manual
• Download: Parts List and Assembly Instructions PDF

Control Box Settings

Setting	Description
TIMER	This mode activates sound, light, and animation when the Infra-red (IR) sensor is triggered during a 6-hour active period, followed by 18 hours off. The 6H ON/18H OFF cycle repeats continuously. The sensor range is up to 2 meters (6.5 feet).
SENSOR	In this mode, lights, sound, and animation are triggered only by the Infra-red (IR) sensor. Each activation runs one audio cycle. The sensor detects motion within an 80-degree angle and up to 2 meters (6.5 feet) away.
ON	This setting continually operates the lights and the projection eyes screens without animation or sound.
OFF	This switch mode keeps the lights, sounds, and animation off unless a Try Me accessory (not included) is used. When connected, the accessory triggers one full audio cycle. To use it, remove the rubber cap from the Try Me jack and insert the accessory. Replace the cap when not in use.
Multi-Lingual  Sounds	EN - English vocals with background sounds ES - Spanish vocals with background sounds FR - French vocals with background sounds      - Non-Linguistic Vocals, background sounds only
	Raise or lower the volume using the volume control turn dial, turn all the way down to turn the volume off.

Important Setup Tips

• Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
• Switch on the control box should be set to your preferred mode.
• If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure the base surface is flat and nothing blocks the movement.
• Check that the speaker volume is turned up.
• Indoor/Outdoor item.
• The item is compatible with external timers and preserves its setting when the power is turned OFF/ON.

Troubleshooting & FAQs
