Product Overview
- Model Number: 25SV24293
- Height: 5.5 ft.
- Motion: Head, mouth, torso
- Lighting: LED eyes
- Sound: Speaks 5 classic Snow White witch phrases
- Activation: Infrared motion sensor
- Indoor item
- Power Requirements: 3A Indoor Adapter
Replacement Parts
Purchase Replacement Parts here
Limited stock: Parts available while supplies last!

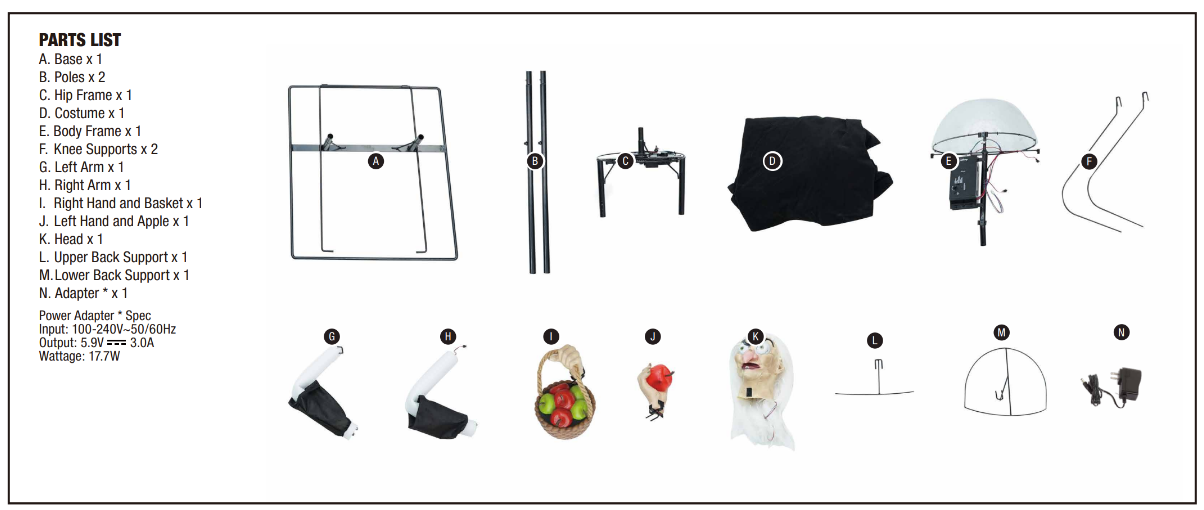

Parts List:
Assembly Instructions
- Recommended: 1 adult
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
| Function | Effect |
LIGHTS ONLY |
Lights are activated indefinitely. |
OFF/STEP PAD |
Deactivated unless TRY ME pad is triggered. Lights, sound and animation activate for one activity cycle. |
TIMER/SENSOR |
Lights stay on and the sensor is active for 6 hours, then everything turns off for 18 hours. Repeats daily. |
| Adjustable dial; turn all the way down to mute. |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
- Be sure nothing is blocking movement or caught in moving parts.
- Ensure the base surface is flat and nothing blocks the movement.
- Check that the speaker volume is turned up.
- Indoor item.
Troubleshooting & FAQs
What power adapter should I use with 5.5 ft. Animated LED Evil Queen?
A: This item requires 3A Indoor Adapter.
The face looks off/squished. What can I do?
A: The face is made from soft material and sometimes can get a bit squished from transit. It can be re-shaped by carefully pulling on her nose and her neck.
What's the size of the head screw?
A: The size of the screw is 1 inch long and 3 inch diameter.
The apple does not light up. What should I do?
A: Start by checking if the cables are connected properly. If they are connected according to Instruction Manual, then try connecting the hand with an apple directly to the body (Part E):
- If the apple lights up, it means that it is time to replace right arm part H.
- If the apple does not light up, then the hand with apple Part J should be replaced.
