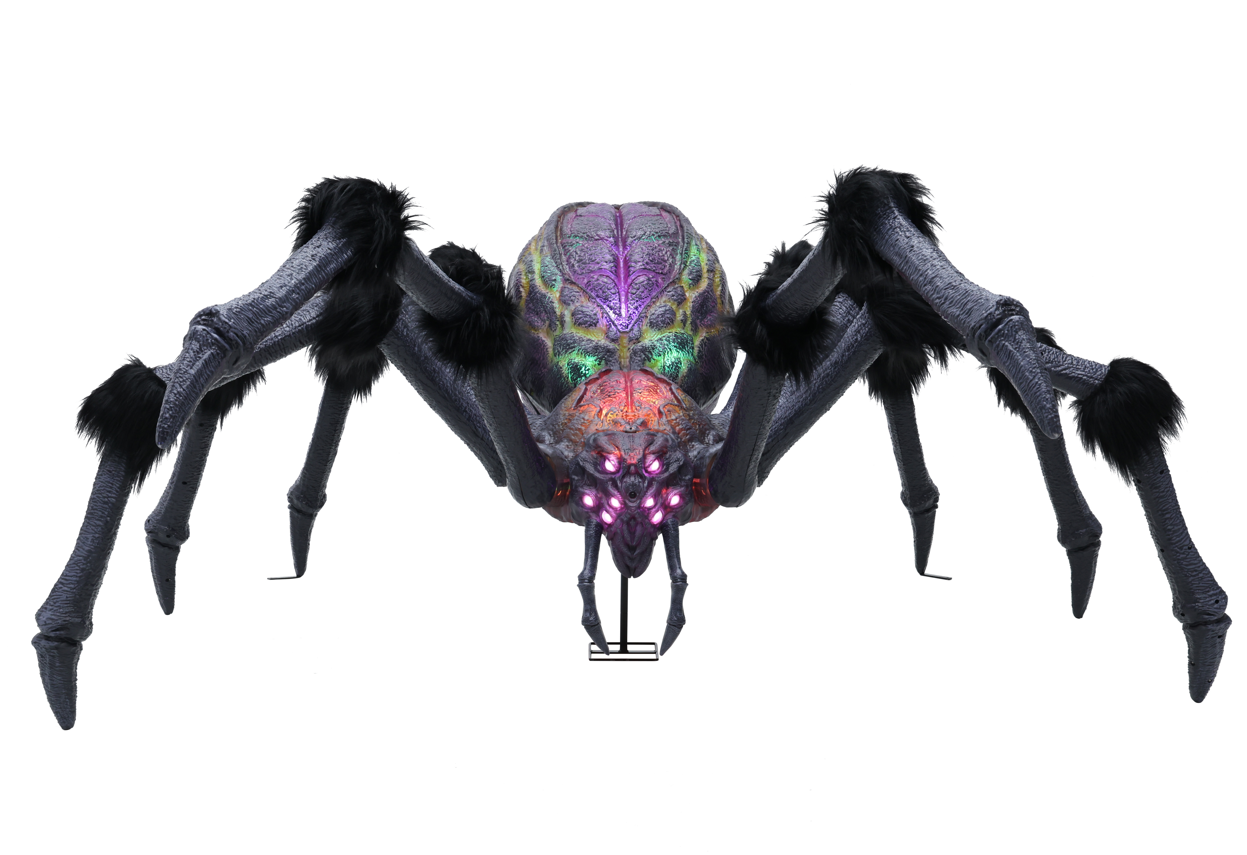

Product Overview

• Model Number: 25SV24791
• Height: 9.5 feet
• Lighting: LED multi-colored eyes, head and abdomen lights
• Activation: Infrared motion sensor
• Indoor/Outdoor
• Power Requirements: 2A Outdoor Adapter

Replacement Parts

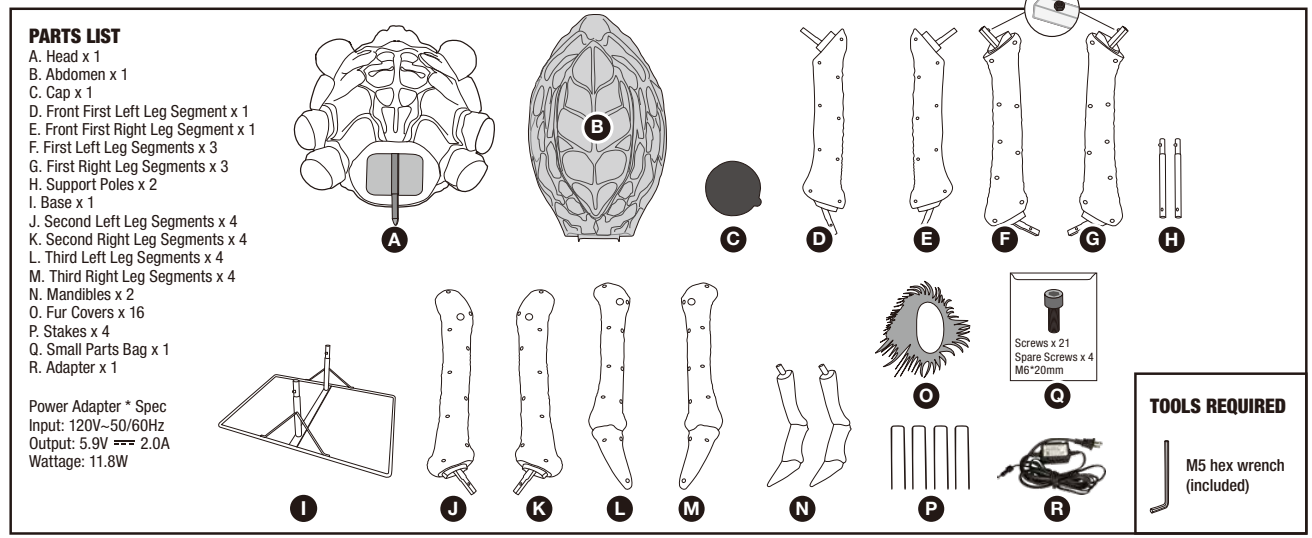

Parts List:

Assembly Instructions

• Recommended: 2 adults
• Ensure: All parts are properly connected as shown in the instruction manual
• Download: Parts List and Assembly Instructions PDF

Control Box Settings

Setting	Description
LIGHTS ONLY	Lights activate indefinitely until the setting is changed.
TIMER/SENSOR	Activates SENSOR mode for 6 hours, then turns off for 18 hours in a repeating cycle. During the active period, motion within 13 ft (80° range) triggers one sound cycle.
OFF/STEP PAD	Activates one cycle when triggered by a Step Pad or Try Me Button (not included). Stays off otherwise.
	Adjustable dial; turn all the way down to mute.

Important Setup Tips

• Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
• Switch on the control box should be set to your preferred mode.
• If not functioning properly (ex: lights don't activate), ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
• Ensure that the floor or surface that the item sits on is flat and level.
• Ensure that the volume is not all the way down.
• There's a red light indicator on the control box.
• Be sure nothing is blocking the sensor.
• Indoor/Outdoor.

Troubleshooting & FAQs
