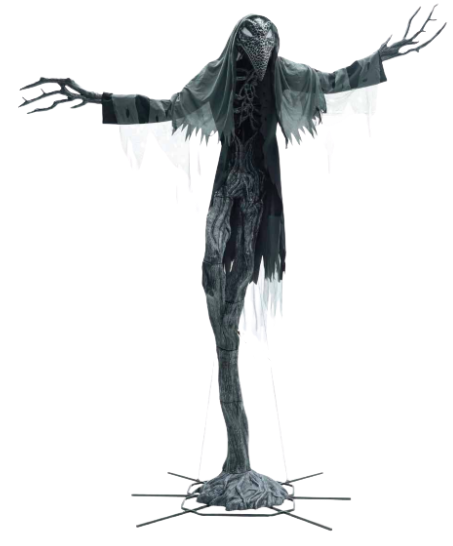

Product Overview
- Model Number: 25SV25076
- Height: 15 feet
- Lighting: LEDs light up face and chest with flickering flame effect
- Activation: Infrared motion sensor
- Indoor/Outdoor
- Power Requirements: 1.5A Outdoor Adapter
Replacement Parts
Purchase Replacement Parts here
Limited stock: Parts available while supplies last!

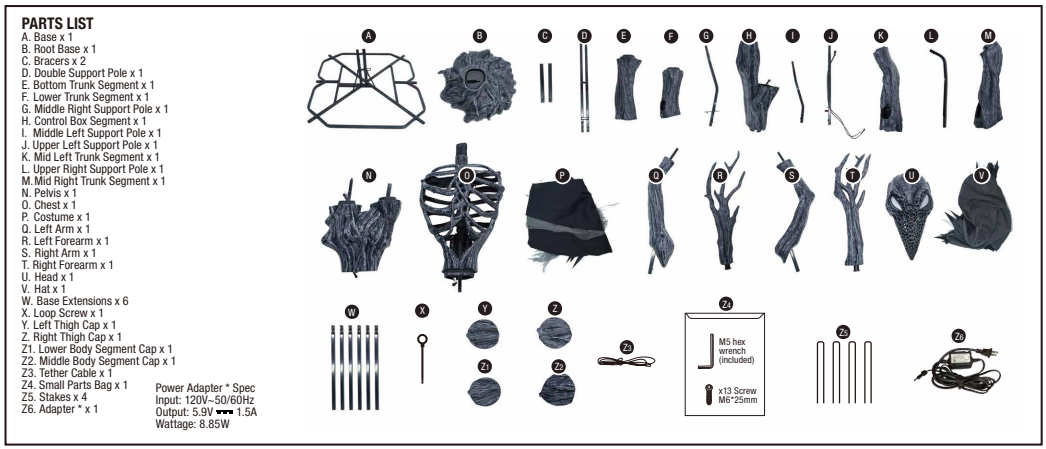

Parts List:
Assembly Instructions
- Recommended: At least 2 adults (3 for easiest setup)
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
| Setting | Description |
| LIGHTS ONLY | In this mode, the lights remain on continuously until the switch mode is changed. |
| TIMER/SENSOR | Set the switch to "TIMER * SENSOR" to enable a 6-hour sensor mode followed by 18 hours off, repeating daily. During the active period, lights stay on continuously, and animation is triggered by the IR sensor when motion is detected within 4 m (13 ft) and an 80° range. |
| OFF/STEP PAD | In this mode, the item runs one cycle only when triggered by a Step Pad or Try Me Button (not included). It stays off otherwise. |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- There's a red light indicator on the control box.
- Check and ensure that there is power to your 15 ft. Gally-Crow by checking for the red indicator light on the control panel. If there is power, a red indicator light will light up on the control box. If the red light indicator is set to "OFF", please change it to "ON" or "TIMER."
-
Indoor/Outdoor.
Troubleshooting & FAQs
Q: Why are the eyes of my 15 ft. Giant-Sized Animated LED Gally-Crow not working or do not light up?
A: Check and ensure that all cables are connected to their corresponding cable as shown in the instruction sheet (See steps 5.2, 6.1, 7.2, 8.1 and 12)
Q: What's the size of the Loop Screw?
A: Loop Screw: Stainless Steel Long Lifting Eye Bolt with Nut & Washer, M8, 6 inch long, 5/16 or 8 mm
Q: What's the length of the Tether Cable Part Z3?
A: The length of the Tether Cable is 20 ft., including hoops.
