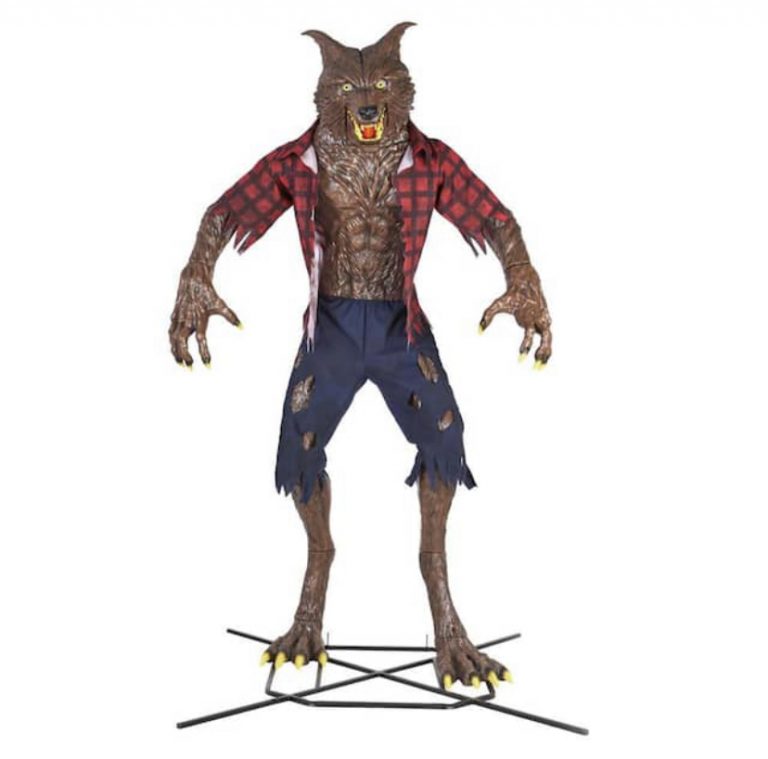

Product Overview

• Model Number: 22SV23409
• Height: 9.5 ft.
• Motion: head and mouth move
• Sound: spooky sound effects
• Lighting: LCD eyes and illuminated mouth
• Poseable arms
• Activation: infrared motion sensor
• Indoor/Outdoor

• Power Requirements: 2A Outdoor Adapter



Replacement Parts

This product is no longer supported by our Parts Replacement Program.

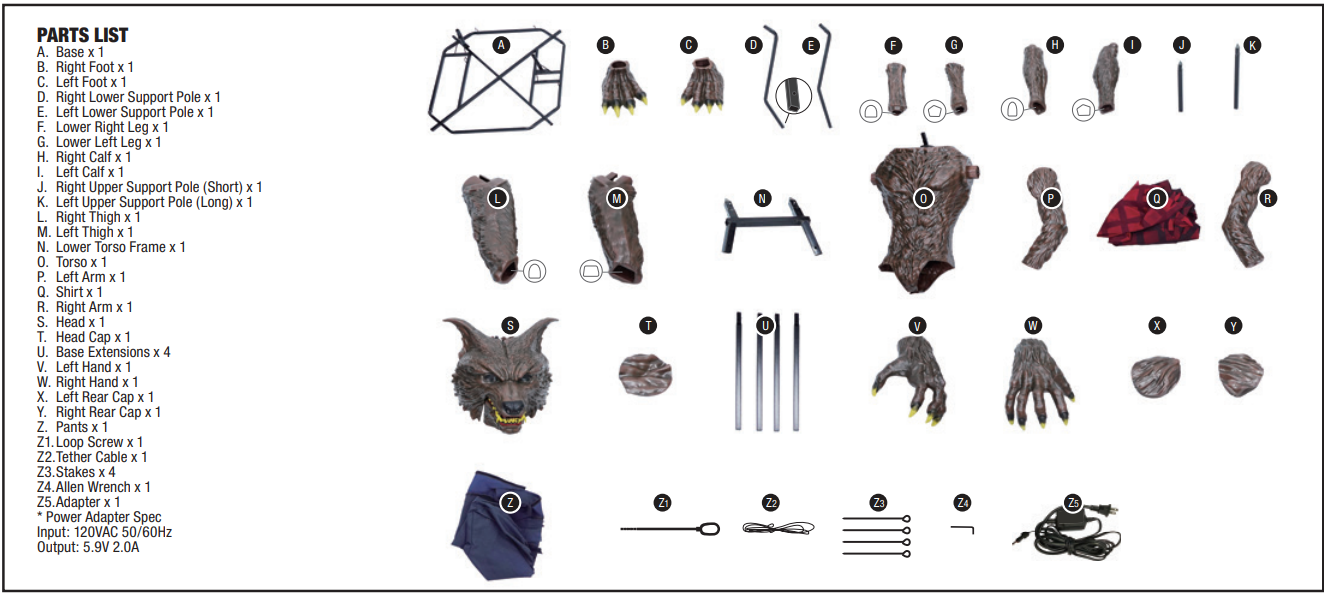

Parts List:

Assembly Instructions

• Recommended at least 2 adults
• Ensure: All parts are properly connected as shown in the instruction manual
• Download: Parts List and Assembly Instructions PDF

Control Box Settings

Setting	Description
ON	This setting will activate the color-changing lights of the item.
SENSOR	Lights, sound, and animation activate for one audio cycle when the IR sensor detects motion (up to 6.5 ft, 80° range; left to right, above, or below).
TIMER	This setting will operate the same as sensor mode within a 6HR On/18 HR Off period.
OFF/TRY ME	Lights, sound, and animation stay off unless triggered by a Step Here Try Me Pad (not included). Each activation runs one audio cycle.
	Adjustable dial; turn all the way down to mute.

Important Setup Tips

• Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
• Switch on the control box should be set to your preferred mode.
• If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
• Indoor/Outdoor Item.
