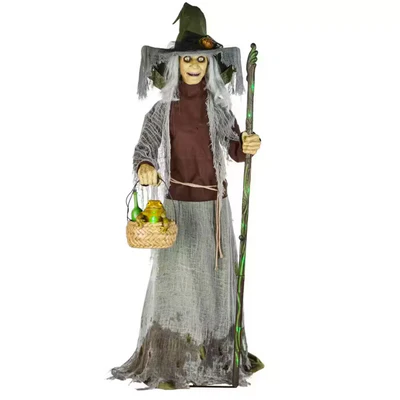

Product Overview

• Model Number: 23SV23794
• Height: 7 feet
• Motion: Jaw, eyes movement
• Lighting: LED Frog and staff
• Sound: 7 different phrases
• Activation: Infrared motion sensor
• Indoor
• Power Requirements: 3A Indoor Adapter

Replacement Parts

This product is no longer supported by our Parts Replacement Program.

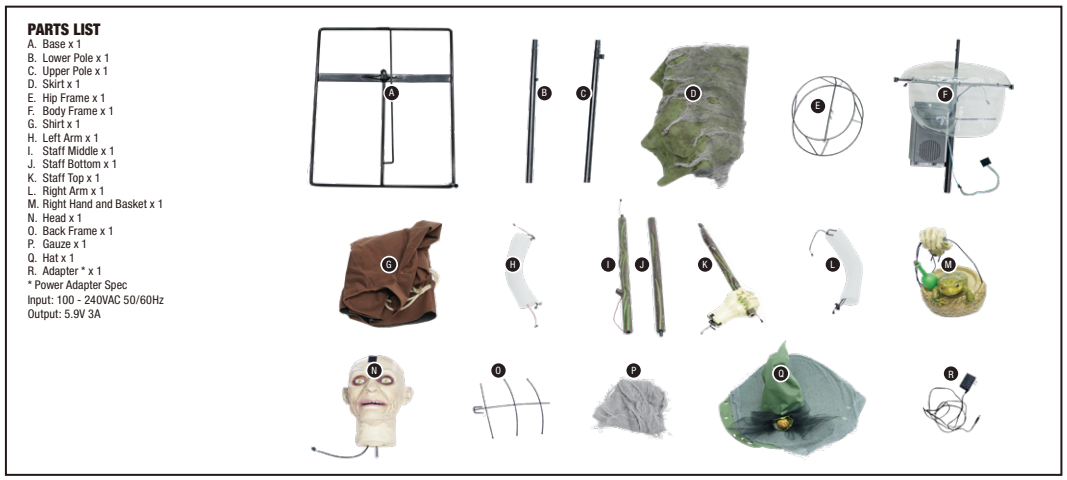

Parts List:

Assembly Instructions

• Recommended: 1 adult
• Ensure: All parts are properly connected as shown in the instruction manual
• Download: Parts List and Assembly Instructions PDF

Control Box Settings

Setting	Description
SENSOR	Lights, sound, and animation activate for 1 cycle when motion is detected (up to 6.5 ft, 80° range). Lights stay on between activations. Sound and movement activate only in SENSOR mode when triggered.
OFF/TRY ME	Activates one audio cycle when triggered by a Step Here Try Me Pad (not included). Stays off otherwise.
LIGHTS ONLY	Lights remain on continuously. No animation or sound in this mode.
	Adjustable dial; turn all the way down to mute.

Important Setup Tips

• Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
• Switch on the control box should be set to your preferred mode.
• If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
• Ensure the base surface is flat and nothing blocks the sensor.
• Check that the speaker volume is turned up.
• Indoor item.
