Product Overview

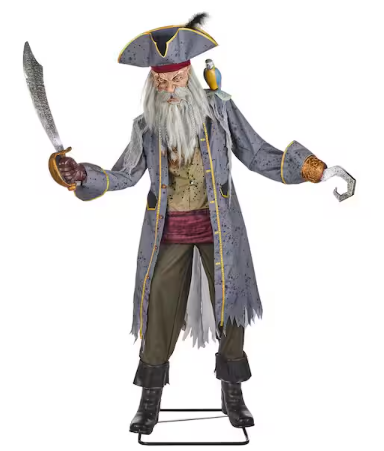

- Model Number: 24SV24285
- Height: 7 feet
- Motion: Head, jaw, torso and sword
- Sound: 5 different phrases
- Lighting: LED eyes, illuminated hook and sword
- Activation: Infrared motion sensor
-
Power Requirements: 3A Indoor Adapter
Replacement Parts
This product is no longer supported by our Parts Replacement Program.

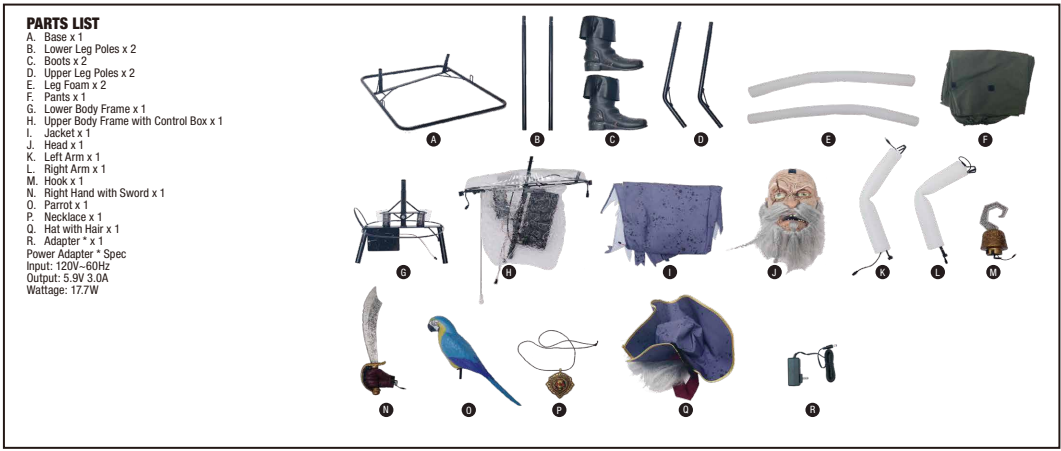

Parts List:
Assembly Instructions
- Recommended: 1 adult
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
Setting |
Description |
LIGHTS ONLY |
Lights activate indefinitely until the setting is changed. No sound or animation. |
SENSOR |
Lights, sound, and animation activate for one cycle when the IR sensor detects motion (up to 13 ft, 80° range; left to right, above, or below). |
OFF/ STEP PAD |
Activates one cycle when triggered by a Step Here Try Me Pad (not included). Remains off otherwise. |
| Adjustable dial; turn all the way down to mute. |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- If not functioning properly (ex: sword or hook doesn't light up, head, body, or arm doesn't move), ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
- Be sure nothing is blocking movement or caught in moving parts.
- Ensure the base surface is flat and nothing blocks the movement.
- Check that the speaker volume is turned up.
- Indoor Item.
Troubleshooting & FAQs
Q: What's the size of the head screw?
A: Screw Size: 10 (standard) or a M5 (metric) and 5/8" long.
