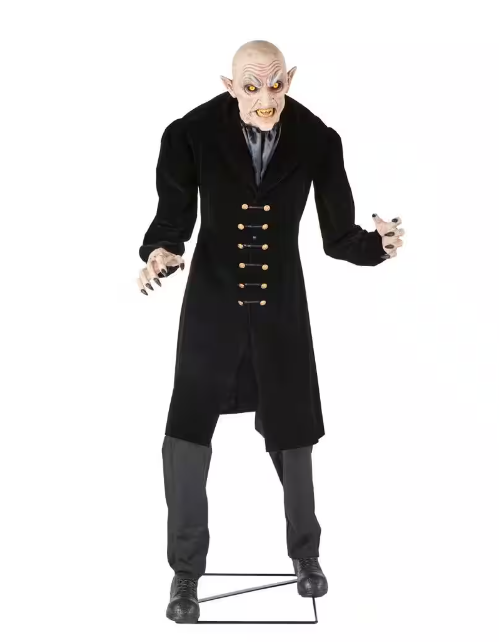

Product Overview

• Model Number: 24SV24279
• Height: 7 ft.
• Motion: Head, torso and mouth
• Sound: 5 different phrases
• Lighting: LED eyes
• Activation: Infrared motion sensor
• Power Requirements: 2A Indoor Adapter

Replacement Parts

This product is no longer supported by our Parts Replacement Program.

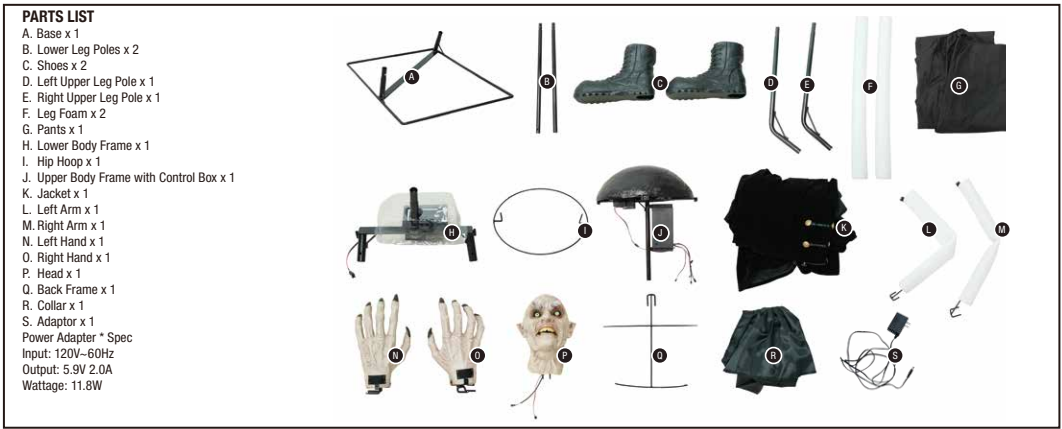

Parts List:

Assembly Instructions

• Recommended: 1 adult
• Ensure: All parts are properly connected as shown in the instruction manual
• Download: Parts List and Assembly Instructions PDF

Control Box Settings

Setting	Description
SENSOR	Activates lights, sound, and animation for one cycle when motion is detected (up to 13 ft, 80° range; front, sides, above, or below).
O	Activates one cycle when triggered by a Step Here Try Me Pad (not included). Remains off otherwise.
I	This switch mode will continuously operate the lights, sound, and animation of the prop.
	Adjustable dial; turn all the way down to mute.

Important Setup Tips

• Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
• Switch on the control box should be set to your preferred mode.
• If not functioning properly (ex: Mouth doesn't move, eyes don't light up), ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure the base surface is flat and nothing blocks the movement.
• Check that the speaker volume is turned up.
• Indoor Item.
