Product Overview

Replacement Parts

This product is no longer supported by our Parts Replacement Program.

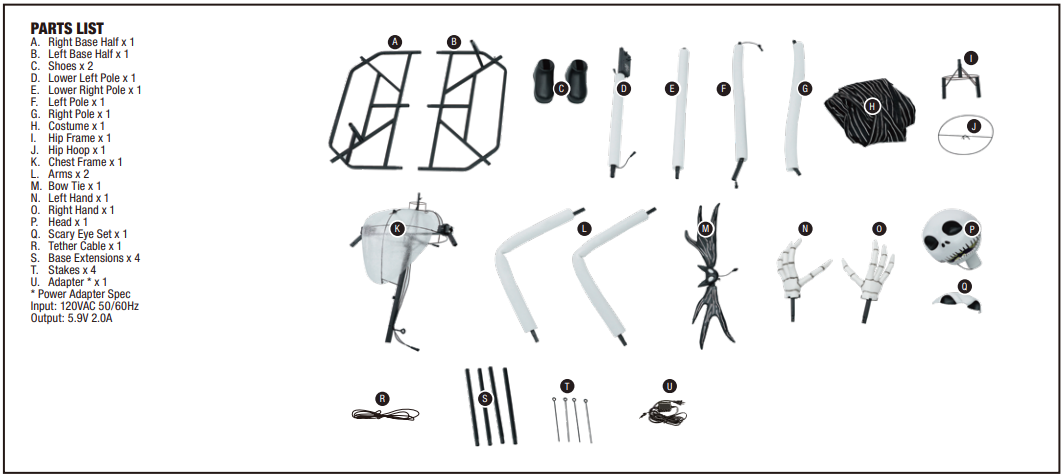

Parts List:

Watch The Home Depot Assembly Instruction Video:

Setting	Description
LIGHTS ONLY	Lights activate indefinitely until the setting is changed. No sound or animation.
TIMER	Operates in LIGHTS ONLY mode for 6 hours, then shuts off for 18 hours. No sound or animation during this mode.
SENSOR	Lights, sound, and animation activate for 1 cycle when motion is detected (up to 6.5 ft, 80° range). Lights stay on between activations. Sound and movement activate only in SENSOR mode when triggered.
OFF/TRY ME	All features are off unless activated by an optional Step Pad or Try Me Button(not included).
	Adjustable dial; turn all the way down to mute.

Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
Switch on the control box should be set to your preferred mode.
If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
Be sure nothing is blocking movement or caught in moving parts.
Ensure the base surface is flat and nothing blocks the movement.
Check that the speaker volume is turned up.
Indoor/Outdoor item.

Q: My Jack Skellington’s Head doesn’t turn/mouth not moving. How do I fix it?

A: Let’s go through a few quick steps to troubleshoot:

Double-check all cable connections — refer to steps 2.1, 3.1, 4.1, 6.1, and 8.1 in the instruction sheet.
Make sure the adapter (Part U) is firmly connected to the control box in Part D, with the threaded cap fully tightened.
Press the button on the control box three times to set it to Sensor mode — you should see a red light indicator turn on. This mode should activate lights, sound, and animation.
Ensure nothing is blocking the sensor and that it’s properly connected.

Q: The lights aren’t working. What can I do?

A: Jack Skellington’s lights are located in his bow tie (Part M). Here’s how to troubleshoot:

Check all cable connections — refer to steps 2.1, 3.1, 4.1, 6.1, and 8.1 in the instruction sheet.
Try switching between Lights Only mode and Sensor mode to see if the lights respond.
If the lights still don’t turn on in either mode, it’s likely time to replace the bow tie.

Q: Can I purchase 2024 replacement head for my 2023 Jack Skellington?

A: Unfortunately, the 2024 head is not compatible with 2023 torso at this time.

Q: What's the head screw size?

A: Head Screw: .2" diameter and 1/2".

Q: Where is the sensor located?

A: The sensor on Jack Skellington is located on the costume, and it comes as a separate part.
