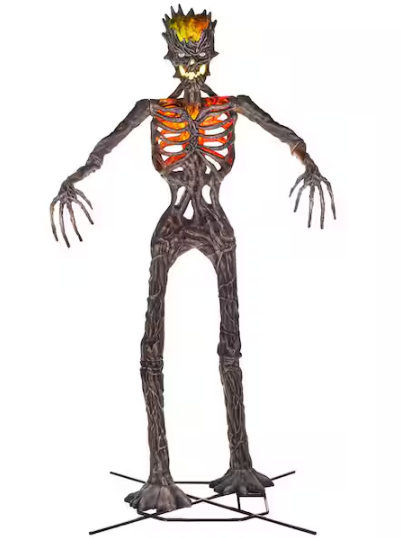

Product Overview
- Model Number: 24SV24540
- Height: 12.5 feet
- Lighting: LCD Eyes and LED Chest, Head
- LED Modes: 8 Modes: red, yellow, green, aqua, blue, purple, white, and color changing.
- Poseable Arms
- Indoor/Outdoor
- Power Requirements: 1.5A Outdoor Adapter
Replacement Parts
This product is no longer supported by our Parts Replacement Program.

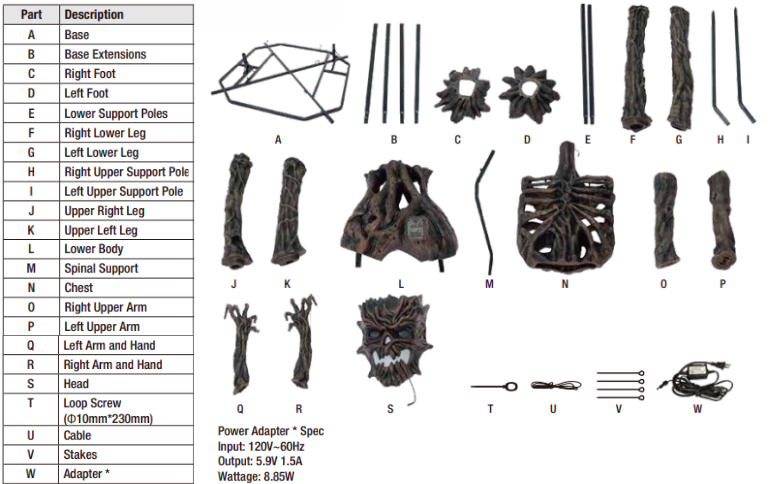

Parts List:
Assembly Instructions
- Recommended: At least 2 adults (3 for easiest setup)
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
Setting |
Description |
ON |
Press middle button once to activate the LCD eyes and LEDs indefinitely until the settings are changed. |
TIMER |
Press the middle button a second time to activate Timer Mode. In this mode, the LCD eyes and LEDs will stay on for 6 hours and then turn off for 18 hours. This cycle will repeat indefinitely until the settings are changed. |
OFF |
Press middle button a third time to turn LCD eyes OFF and LEDs. |
MODE |
Corner button toggles through 8 LED options. which include red, yellow, green, aqua, blue, purple, white, and color changing. |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- The item is compatible with external timers and preserves its setting when the power is turned OFF/ON.
- Indoor/Outdoor.
Troubleshooting & FAQs
Q: The LCD eyes and/or LEDs aren’t lighting up or switching between modes. What should I do?
A: Let’s get those lights working!
Start by making sure all cables are securely connected to their matching ports. Then, check that the adapter is firmly plugged into both a working outlet and the adapter receiver.
Q: The item isn’t turning on, what should I check?
A: Let’s troubleshoot together!
First, make sure the adapter is plugged into a working outlet, and that it’s securely connected to the adapter receiver on your item.
Q: Are the lights and the head from the Inferno Deadwood Skeleton compatible with the Inferno Pumpkin Skeleton?
A: No, the heads are not compatible, the lights are not interchangeable.
