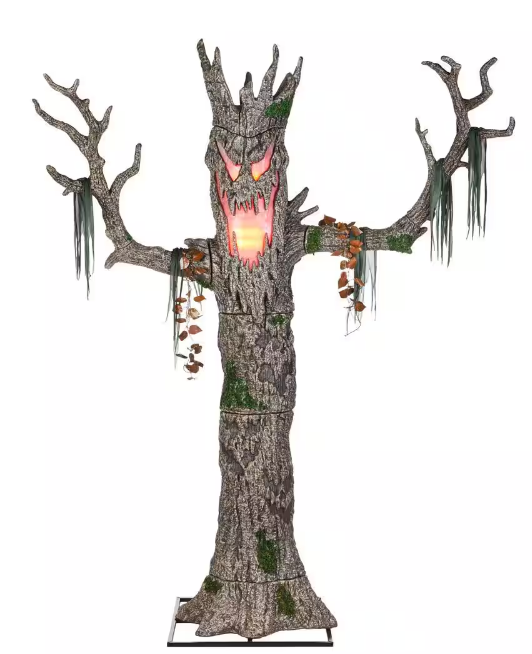

Product Overview
- Model Number: 24SV24289
- Height: 9 ft.
- Lighting: Eyes and mouth have 7 LED Modes
- Indoor/Outdoor
- Power Requirements: 1.5A Outdoor Adapter
Replacement Parts
Purchase Replacement Parts here
Limited stock: Parts available while supplies last!

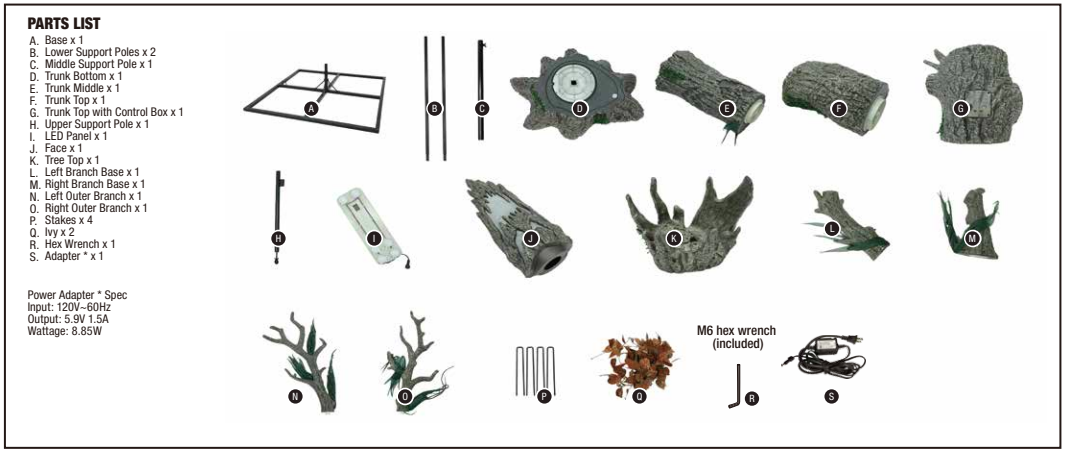

Parts List:
Assembly Instructions
- Recommended: 2 adults for easiest setup
- Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
Setting |
Description |
| ON | The lights of the item are activated indefinitely until the setting is changed. |
| TIMER | The lights of the item are activated for a 6 hour period and then deactivated for an 18 hour period. This cycle continues indefinitely until the setting is changed. |
| OFF | The lights of the item are only activated for an 15 second activity cycle if the Step Pad is pressed. Otherwise the lights remain off. |
| LED MODE | The LED Mode button allows the user to toggle between 8 different light functions which include; steady red, steady yellow, steady green, steady aqua, steady blue, steady purple, steady white, and color changing. |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- Indoor/Outdoor item.
-
The item is compatible with external timers and preserves its setting when the power is turned OFF/ON.
Troubleshooting & FAQs
Q: What are the dimensions of the screws?
A: Pole C Screw: 5/16 Diameter x 5/8" Length
Pole H Eye Hook Style Bolt: M6 Diameter x 2" Length.
Q: Can I use 2025 LED Panel and Control Box for my 2024 Tree?
A: Unfortunately 2025 parts are not compatible with 2024 9 ft. Giant-Sized Murderous Maple.
