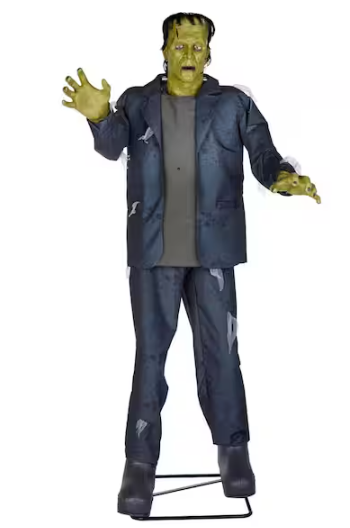

Product Overview
- Model Number: 24SV24290
- Height: 7 ft.
- Motion: Head, Mouth, Arms
- Sound: 4 classis monster sounds
- Lighting: LED Bolts in the neck
- Bolts function: Activate only on phrases 3 and 4
- Activation: Infrared motion sensor
- Power Requirements: 3A Indoor Adapter
Replacement Parts
Purchase Replacement Parts here
Limited stock: Parts available while supplies last!

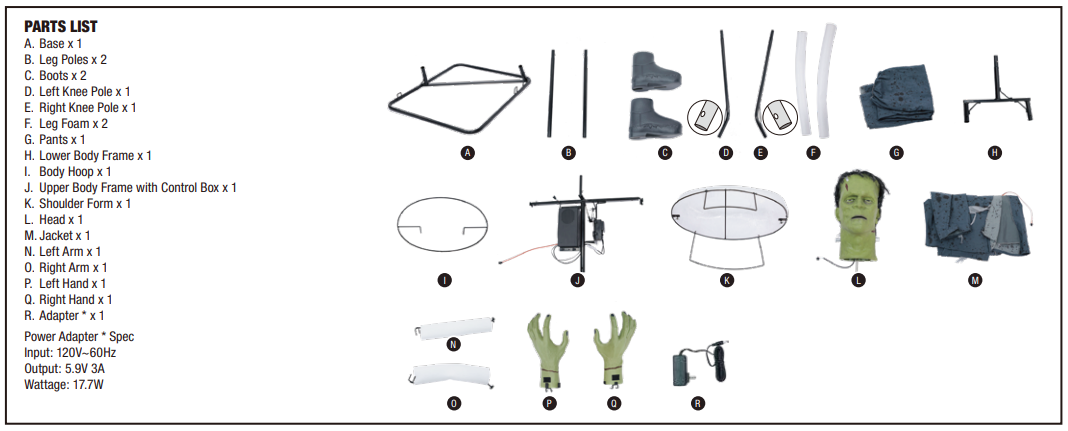

Parts List:
Assembly Instructions
-
Recommended: At least 1 adult
-
Ensure: All parts are properly connected as shown in the instruction manual
- Download: Parts List and Assembly Instructions PDF
Control Box Settings
| Setting | Description |
| SENSOR | Lights, sound, and animation activate for 1 cycle when the IR sensor detects motion within 13 ft (4 m) and an 80° range, left to right, above, or below. |
| OFF/STEP PAD | Activates one cycle of animation and sound when triggered by a Step Pad or Try Me Button (not included). Remains off otherwise. |
| LIGHTS ONLY | Lights stay on continuously until the mode is changed or power is turned off. No sound or animation. |
| Adjustable dial; turn all the way down to mute. |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- If not functioning properly, ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
- Be sure nothing is blocking movement or caught in moving parts.
- Ensure the base surface is flat and nothing blocks the movement.
- Check that the speaker volume is turned up.
- Indoor item.
Troubleshooting & FAQs
Q: The lights do not activate. What should I do?
A: Frankenstein's Monsters bolts do not light up on phrase 1 and 2, only on phrase 3 and 4.
Q: What's the size of the head screw?
A: The size of the screw is 10 (standard) or a M5 (metric) and 5/8 of an inch long
