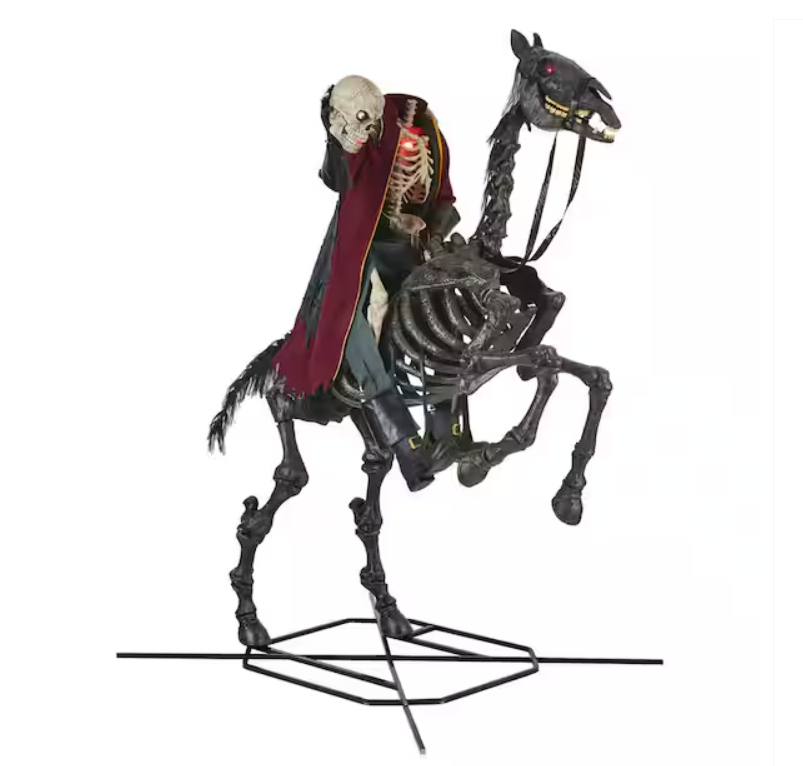

Product Overview
- Model Number: 24SV24282
- Height: 8.5 feet
- Motion: Right Arm, Skull Jaw, Horse Head
- Sound: 6 spooky phrases
- Lighting: Rider's Body and Skull, Horse Chest and Eyes
- Lighting Modes: Red Steady
- Activation: Infrared Motion Sensor
- Indoor/Outdoor
- Power Requirements: 3A Outdoor Adapter
Replacement Parts
This product is no longer supported by our Parts Replacement Program.

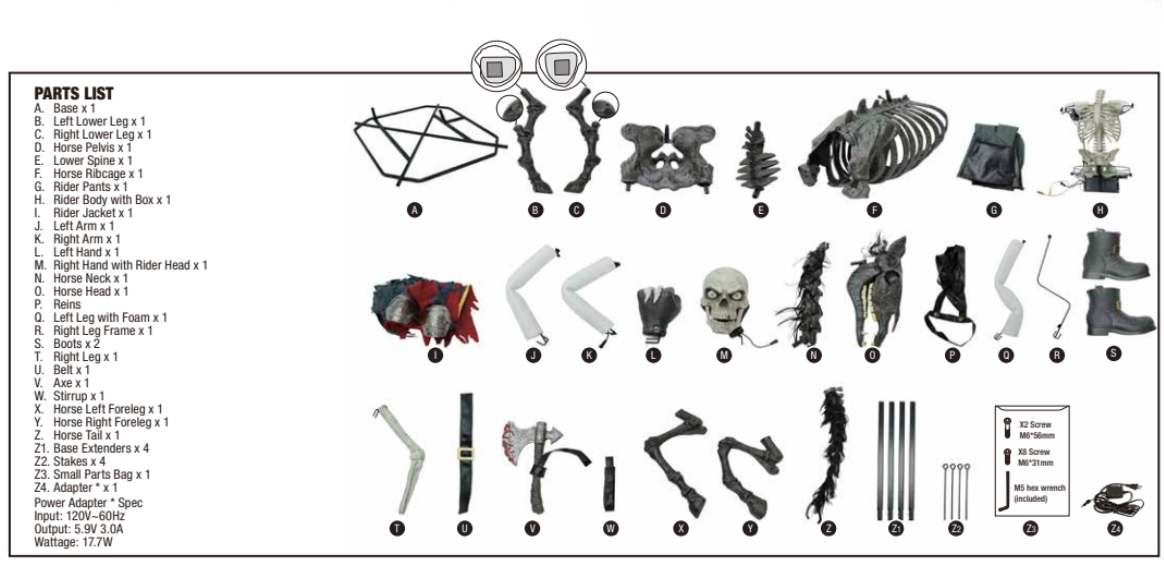

Parts List:
Assembly Instructions
- Recommended: At least 2 adults (3 for easiest setup)
- Ensure: All parts are properly connected as shown in the instruction manual
- Download Parts List and Assembly Instructions PDF
Watch The Home Depot Assembly Instruction Video:
Control Box Settings
| Setting | Description |
| LIGHTS ONLY | Lights activate indefinitely until the setting is changed. No sound or animation. |
| TIMER | Operates in SENSOR mode for 6 hours, then automatically shuts off for 18 hours. |
| SENSOR | Lights always stay on. Sound and movement are activated for 1 activity cycle when triggered by a motion sensor (up to 13 ft. and 80° range). |
| OFF/STEP PAD | All features are off unless activated by an optional Step Pad or Try Me Button(not included). |
| Adjustable dial; turn all the way down to mute. |
Important Setup Tips
- Adapter must be tightly screwed in at the Function Control Box and plugged into a wall outlet.
- Switch on the control box should be set to your preferred mode.
- The control box has a red light indicator.
- If not functioning properly (ex: head and hands don't light up, head doesn't move), ensure that cables are connected to their corresponding cable as shown in the instruction sheet. Brown wire is for sensor, yellow - horse chest light, white - rider's body light.
- Be sure nothing is blocking movement or caught in moving parts.
- Ensure the base surface is flat and nothing blocks the movement.
- Check that the speaker volume is turned up.
- Be sure nothing is blocking the sensor. Prop only speaks on Sensor Timer Mode or when activated with a Step Pad. See Operations Instructions page 5 for complete details.
- Indoor/Outdoor item.
-
The item is compatible with external timers and preserves its setting when the power is turned OFF/ON.
Troubleshooting & FAQs
Q: The Rider’s skull isn’t lighting up. What can I do?
A: Let’s try a couple of quick steps to figure it out:
Check the arm and hand connections: Make sure the hand and arm are properly connected to the control box (see steps 4.2 and 4.3 in the instruction sheet).
Test the head directly: Try connecting the head directly to the body at the shoulder.
What you find will tell you what to do next:
If the skull lights up, the arm is likely the issue and should be replaced.
If it still doesn’t light up, it’s time to replace the skull.
Q: Rider’s pants look damaged. Is it normal?
A: Yes, that’s completely normal! The worn look is part of the design, and the hole is there to show bones.
